Safety Speed Cut SR5UA 120V Panel Saw and Router Combo

In Stock
SKU
SR5UA
$9,129.00
ⓘ Special Order
Special Order
This item is temporarily out of stock, and is expected to ship within 6–8 business days after ordering.

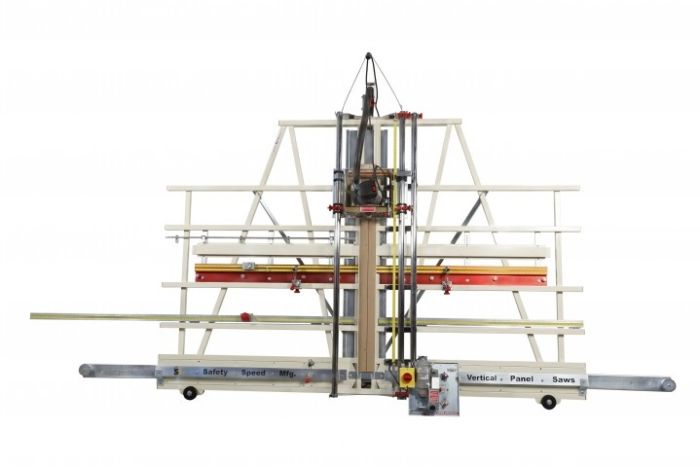

The SR5UA Saw Router Combination Machine is a fully loaded solution for high production cutting and routing. It features over $1,400 in savings compared to ordering each accessory individually. The following upgrades and accessories are included in the price of this machine:

  • Upgraded 3 HP heavy-duty worm drive saw motor
  • Upgraded 3+ HP heavy-duty router motor
  • Aluminum material rollers
  • Wheels
  • Fixed Stand
  • Pair of extensions adding an additional 22 to each side
  • Left (8™) and right (5™) Quick Stop® gauges
  • MID-WAY FENCE® for processing panels at waist level
  • MID-WAY FENCE® flip stop
  • Dust collection kit
  • Hold down bar
  • Backerboard
  • Thin material pressure guard for accurately processing thin material
  • 2 blind dado stops
  • 860NRTCG Saw Blade

The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. It features a floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can switch to a router in less than one minute and includes a dust system to collect debris while cutting and routing.

Standard Equipment
  • 3 HP worm drive saw motor
  • 3+ HP heavy-duty router motor
  • 10 ft. welded steel frame
  • Chrome plated 1 ¾ guide tubes
  • 8 Nylatron roller bearing systems
  • Adjustable vertical and horizontal rulers
  • Quick change from vertical and horizontal cutting
  • Thin material pressure guard
  • Solid aluminum material rollers
  • Counterweight system
  • Adjustable floating router head
  • MID-WAY FENCE® with stop
  • Backerboard
  • 4 material clamps
  • 2 blind dado stops
  • Wheels
  • Fixed Stand
  • Extensions
  • Left and right Quick Stop® gauges
  • MID-WAY FENCE- flip stop
  • Dust hood and hose kit
  • Hold down bar
  • Specialty saw blade and router bit for v-grooving
  • 1 year parts warranty

Specification
  • Weight: 687 lbs
  • Dimensions: 124 x 17 x 92 in
  • Max. Crosscut: 62"" / 1575mm
  • Max. Rip Cut: Unlimited
  • Max. Cut Thickness: 1 3/4"" / 45mm
  • Cut Accuracy (Straight and Square): 1/64"" / 0.4mm
  • Saw Motor Horsepower: 3 HP
  • Saw Motor Type: Worm Drive
  • Saw Motor Amps: 13 Amps
  • Saw Motor Voltage: 120 Volts
  • Saw Blade Diameter: 8"" / 210mm
  • Router Motor Horsepower: 3 HP
  • Router Motor Type: Variable Speed
  • Router Motor Amps: 15 Amps
  • Router Motor Voltage: 120 Volts
  • Router Bit Collet: 1/4"" or 1/2"" collet router bits
  • Frame Length: 120"" / 3050mm
  • Country of Origin: United States
