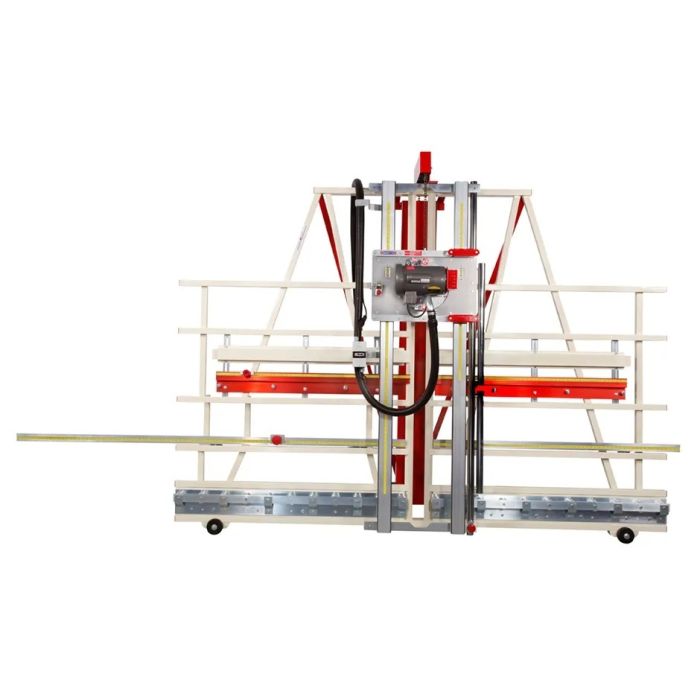

Safety Speed Cut 7400M 64" Crosscut Panel Saw (3~ Motor)

Built with many similarities to the 7000 model, including high induction motors, the 7400 and 7400XL Panel Saws include key upgrades that enhance performance and precision. These machines are engineered for continuous use and deliver exceptional accuracy and efficiency for professional shops.

Key Upgrades Include:

• Rigid beams and rugged frame improving cut accuracy
• Patented MID-WAY? Fence integrated into the machine
• 22 aluminum material rollers on the 7400 model
• Tighter cutting tolerance of .005""
• 2.125"" depth of cut
• Optional material scoring - recommended for premium wood or melamine processing

Accessories built into this machine and included in the price make the 7400 and 7400XL ready for immediate use.

Included Accessories:

• Quick stop gauges (8' left, 5' right)
• Wheels for mobility
• MID-WAY FENCE? for processing panels at waist level
• Dust kit
• 864NRATB saw blade
• Hold down bar
• Integrated stand within the machine

Continuous usage panel processing made easy - the 7400M panel saw features a 10' frame, and the 7400XL features a 13' frame. Aside from frame length, there are no other differences between these two machines.

• Choice of single or three-phase heavy-duty induction saw motor
• Welded steel frame and integrated stand system
• Dual V-track precision guide system
• Adjustable vertical and horizontal rulers
• Quick stop gauges (8' left, 5' right)
• Saw blade included
• Quick change from vertical to horizontal cutting
• Floating pressure saw foot
• Solid aluminum material rollers
• Enclosed counterweight system
• MID-WAY FENCE?
• Dust collection ready
• Hold down bar
• Wheels
• 3-year warranty
• TUV certified to UL/CSA standards

• Weight: 950 lbs
• Dimensions: 124 x 98 x 48 in
• Max. Crosscut: 64"" / 1,625 mm
• Max. Rip Cut: Unlimited
• Cut Depth: 2 ?"" / 55 mm
• Cut Accuracy: .005"" / 0.125 mm
• Frame Length: 120"" / 3,050 mm
• Daily Usage: Continuous (8+ Hours)
• Rollers: 22
• Saw Blade Diameter: 8"" / 210 mm
• Motor: 3HP, 3~ 230V, 7.6 AMPS
• Saw Blade Speed: 3,450 RPM
• Power Supply Options: Single-phase or three-phase power at 50/60 HZ
• Country of Origin: United States
