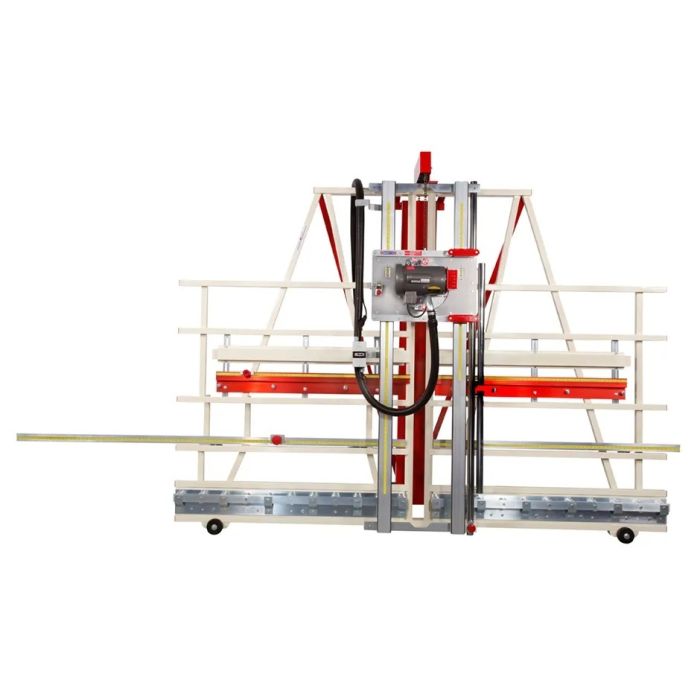

Safety Speed 7400XL Panel Saw (3~ Motor) 460V

Built with many similarities to the 7000 model, including high induction motors, the 7400XL Panel Saw includes several key upgrades that enhance cutting precision and durability. This model is engineered for heavy-duty, continuous use while maintaining exceptional accuracy and performance.

Key Upgrades Include:

• Rigid beams and rugged frame improving cut accuracy
• Patented MID-WAY? Fence built into the machine
• 22 aluminum material rollers on the 7400
• Tighter cutting tolerance of .005""
• 2.125"" depth of cut
• Optional material scoring - recommended for premium wood or melamine

The only major difference between the 7400XL and the 7400 Panel Saw is that the 7400XL features a longer 13' frame. Accessories built into this machine and included in the price make it production-ready out of the box.

Included Accessories:

• Quick stop gauges (8' left, 5' right)
• Wheels for portability
• MID-WAY FENCE? for waist-level panel processing
• Dust collection kit
• 864NRATB saw blade
• Hold down bar
• Integrated stand within the machine

High-production panel processing is now a reality with the 7400XL. Cut material up to 2 ?"" deep for 8+ hours per day with accuracy within .005"" straight and square. Every component of this saw represents quality and performance. Featuring three different motor configurations, heavy extruded beams with precise dual-vee bearings, and the most rigid frame on the market, this machine delivers top-tier woodworking results. The 13' frame is the only difference between this machine and the 7400-M Panel Saw.

• Continuous usage induction saw motor
• Welded steel frame and integrated stand system
• Dual V-track precision guide system
• Adjustable vertical and horizontal rulers
• Floating pressure saw foot
• Solid aluminum material rollers
• Enclosed counterweight system
• Dust collection ready
• 3-year warranty
• TUV certified to UL/CSA standards

• Weight: 1,228 lbs
• Dimensions: 156 x 46 x 96 in
• Max. Crosscut: 64"" / 1,625 mm
• Max. Rip Cut: Unlimited
• Cut Depth: 2 ?"" / 55 mm
• Cut Accuracy: .005"" / 0.125 mm
• Frame Length: 156"" / 3,950 mm
• Daily Usage: Continuous (8+ Hours)
• Rollers: 28
• Motor: 3HP, 3~ 460V
• Saw Blade Diameter: 8"" or 8.25""
• Saw Blade Bore: 5/8""
• Country of Origin: United States
