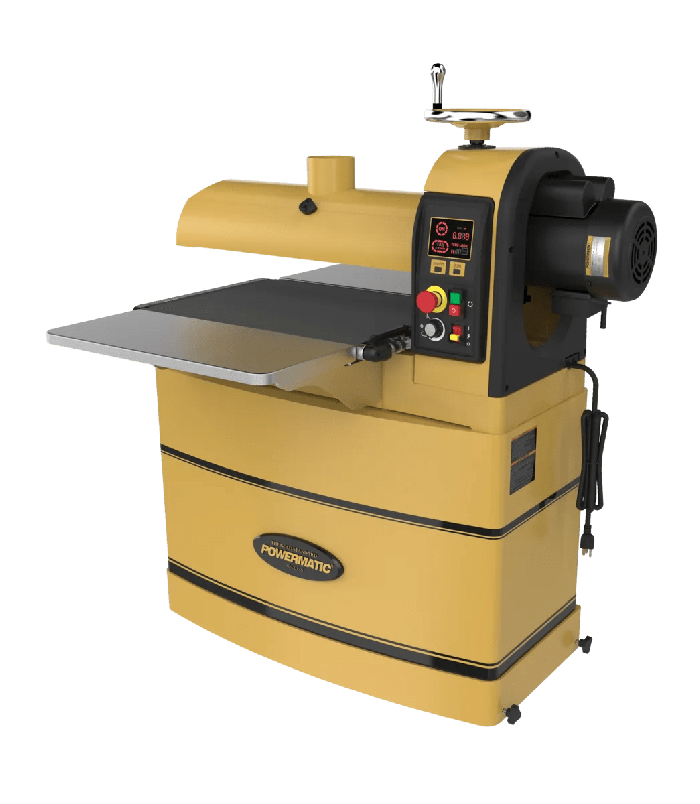

Powermatic PM2244 Drum Sander 1-3/4HP 115V PM9-1792244

Features

• Belt tracking is designed to reduce the need for manual adjustment
• Closed stand with storage for keeping abrasives organized
• Drum carriage is designed to provide strength and consistent performance over time
• Emergency stop for quick shutoff
• Included infeed/outfeed tables provide 37-1/2 inches of support for the workpiece
• Integrated casters make it easy to move unit around the shop
• Integrated LED Control Panel shows power, belt speed, and DRO
• Large, chrome handwheel makes adjusting the drum height smooth and simple
• Table parallelism is adjusted with a dial on the outside of the conveyor bed, eliminating adjustments to the entire drum carriage
• The feed logic system monitors the load on the drum motor and regulates the speed of the conveyor motor to maintain the highest feed rate without overload

Specifications

• Stock Number: PM9-1792244
• Conveyor Speed (FPM): 0 to 10
• Drum Bearing Diameter (In.): 5
• Drum Diameter (In.): 5
• Drum Length (In.): 22
• Drum Speed (RPM): 1720
• Dust Collection Minimum CFM Required (CFM): 800
• Dust Port Outside Diameter (In.): 4
• Maximum Board Thickness (In.): 4
• Maximum Board Width (In.): 22"
• Minimum Board Length (In.): 2-3/8
• Minimum Board Thickness (In.): 1/32
• Model Number: PM2244
• Motor Amps: 14
• Motor Power (HP): 1-3/4
• Number of Sanding Drums: 1
• Prop 65: Cancer and Reproductive Harm
• Recommended Circuit Size (Amps.): 20
• Style (Type): Drum Sander
• Warranty: 5 Year
• Gross Weight: 418.0
• Net weight: 328.0
