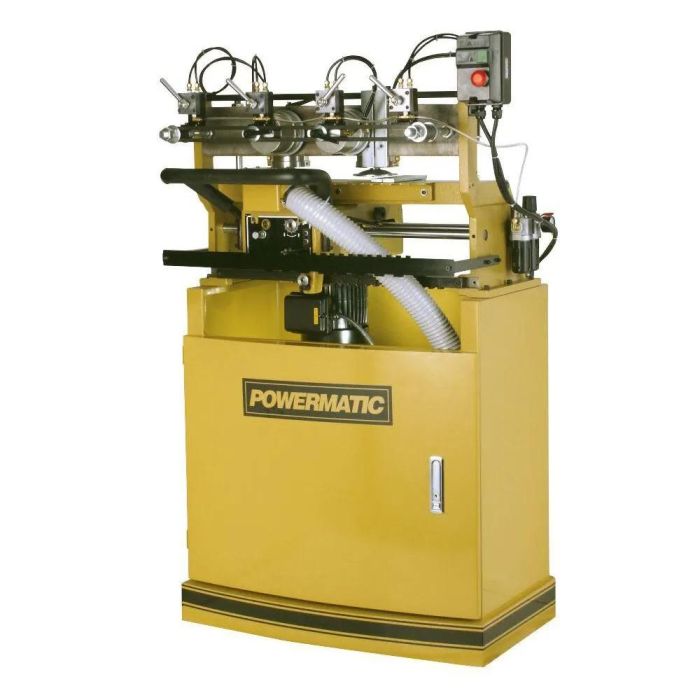

Powermatic DT65 Dovetailer 1HP 1PH 230V PM9-1791305

Features

• Cast iron and steel construction for added stability and durability
• Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
• Eccentric spindle collet for resharpened cutters
• Extra large soft grip handle provides positive control and comfort
• Four dovetail center lines at 1", 1-1/2", 2", and 2-1/2" create a custom appearance
• Material stops provide convenient positioning of the workpiece
• Pneumatic clamping provides quick locking and unlocking of the work piece
• Spring loaded carriage makes for smooth, effortless dovetail cutting
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage

Specifications

• Stock Number: PM9-1791305
• Dust Collection Minimum CFM Required (CFM): 500
• Maximum Dovetail Height (In.): 3/4
• Maximum Front Thickness (In.): 2-3/8
• Maximum Side Thickness (In.): 1-3/16
• Minimum Dovetail Height (In.): 3/16
• Minimum Front Thickness (In.): 9/32
• Minimum Side Thickness (In.): 3/8
• Model Number: DT65
• Motor Phase: 1
• Motor Power (HP): 1
• Motor Voltage (V.): 230
• Number of Dovetail Center Lines: 4
• Number of Spindles: 1
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Style (Type): Pneumatic
• Warranty: 5 Year
• Gross Weight: 510.0
• Net weight: 420.0
