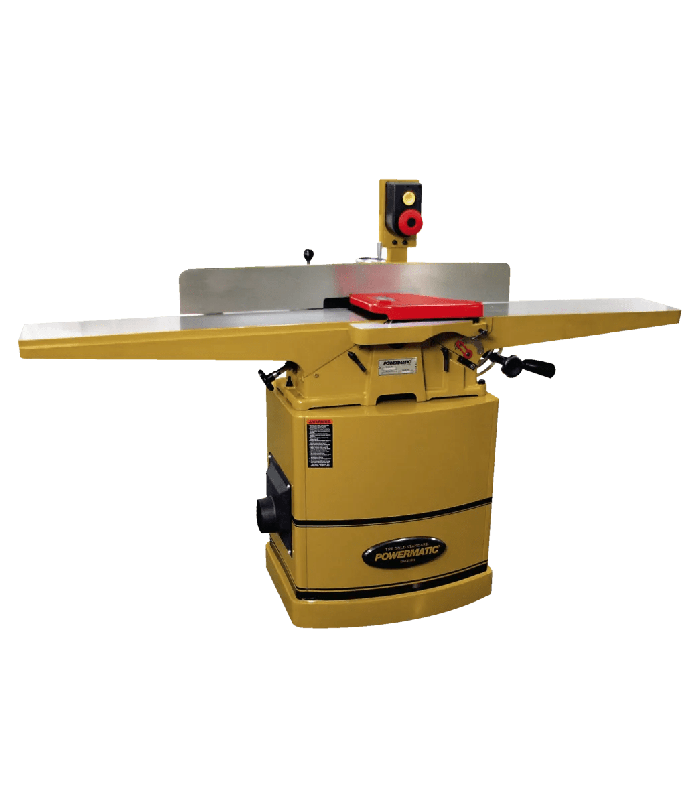

This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
Features:
- High-speed heat-treated steel knives
- Extra long tables are mounted on dovetailed ways, for extended workpiece support
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
- High mount switch for operator convenience
- Handwheel operated worm gear system for smooth fence tilting
- Magnetic push blocks can be stored on the machine within constant reach
- Non-mar fence insert protects table surface
- Large extension rest on infeed table for rabbeting
- Rabbeting Capacity (In.) 1/2
- Table Size (L x W) (In.) 73 x 8-1/2
- Dust Port Outside Diameter (In.) 4
- Motor Power (HP) 2
- Cutterhead Speed (RPM) 7,000
- Fence Positive Stops (Deg.) 45, 90, -45
- Cutterhead Diameter (In.) 3
- Outfeed Table Length (In.) 35-1/2
- Motor Voltage (V.) 230 only
- Dust Collection Minimum CFM Required (CFM) 600
- Cutting Capacity (W x D) (In.) 8 x 1/2
- Motor Phase 1
- Number of Knives 3
- Cuts Per Minute 21,000
- Recommended Circuit Size (Amps.) 20
- Fence Tilt (Deg.) 45 Forward, 45 Backward
- Motor Current (Amps) 9
- Standard Knife Size (L x W x T) (In.) 8 x 11/16 x 1/8
- Fence Size (L x H) (In.) 38 x 4-3/4
- Table Height from Floor (In.) 32
- Infeed Table Length (In.) 35-1/4
| Brand | Powermatic |
|---|---|
| Voltage | 230 V |
| Sizes | 8" |
| Warranty | 5 Year |
| Tool Type | Wood |
| Power | Single Phase |
