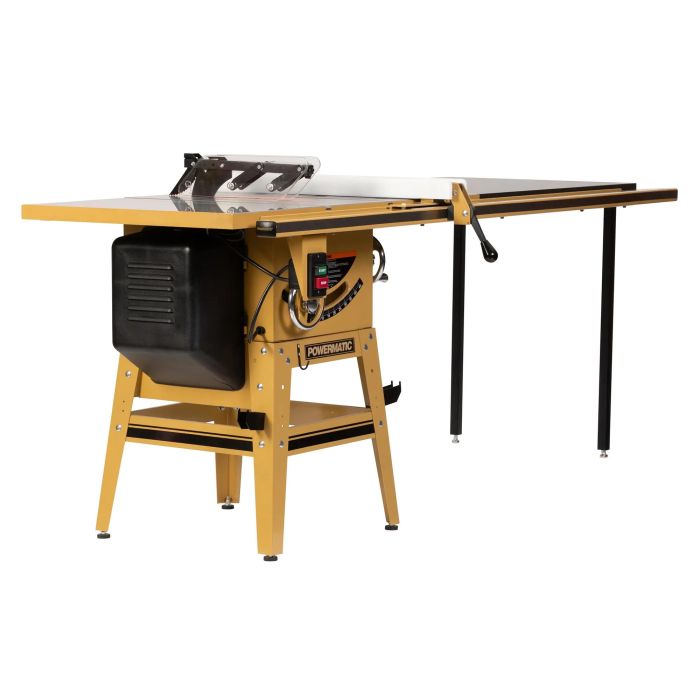

Powermatic 64B, 1.75 HP 115/230V, 50" Fence with Riving Knife PM9-1791230K

Features

• Accu-Fence® locks to rail without play for increased safety and precision
• Blade guard and riving knife have quick release for tool-less mounting and removal
• Built-in dust port increases dust collection efficiency
• Cast iron trunnion ensures smooth blade positioning
• Chrome-trimmed handwheels are ergonomically designed
• Micro-adjust miter gauge with extension plate offers wider crosscut support
• Precision ground cast iron work surface features a beveled edge for smoother operation
• Riving knife maintains close blade proximity to reduce chance of kickback

Specifications

• Stock Number: PM9-1791230K
• Arbor Diameter (In.): 5/8
• Arbor Speed (RPM): 3800
• Blade Diameter (In.): 10
• Dust Collection Minimum CFM Required (CFM): 350
• Dust Port Outside Diameter (In.): 4
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
• Maximum Depth of Cut (In.): 2-1/8 or 3-1/8
• Maximum Diameter of Dado (In.): 8
• Maximum Rip Left of Blade (In.): 12
• Maximum Rip Right of Blade (In.): 50
• Maximum Width of Dado (In.): 13/16
• Miter Gauge Type: T-Slot with Stops
• Model Number: 64B-50
• Motor Amps: 6
• Motor Phase: 1
• Motor Power (HP): 1-3/4
• Motor Voltage (V.): 115/230
• Overall Dimensions (L x W x H) (In.): 79-5/8 x 43 x 42
• Prewired Voltage (V.): 115
• Prop 65: None
• Recommended Circuit Size (Amps.): 20
• Style (Type): Contractor
• Table Height from Floor (In.): 36
• Table Size (L x W) (In.): 44-1/4 x 27
• Table Type: Cast Iron
• Warranty: 5 Year
• Gross Weight: 470.0
• Net weight: 413.8
