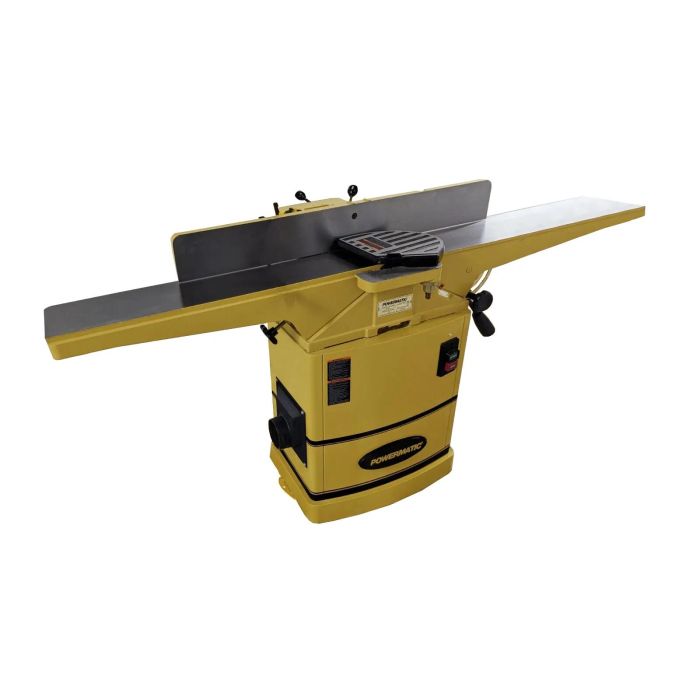

Powermatic 6" Jointer with Helical Head 1HP 1PH 115/230V (54HH) PM9-1791317K
This 6" Jointer features a helical cutterhead with 40 four-sided, indexable carbide inserts, delivering a superior finish and quieter operation compared to conventional cutterheads. The inserts require no adjustment once installed—simply rotate for a fresh edge if one becomes nicked.
Oversized infeed and outfeed tables are mounted on dovetailed ways, and the 38" fence includes positive stops at 90° and 45° (both right and left). The infeed table's fine/quick adjustment lever allows for fast, precise depth-of-cut settings. Powered by a 1 HP motor and a non-slip V-belt drive, this jointer offers maximum performance. The 4" dust port connects easily to any dust collection system.
Note: This model is not intended for rabbeting. For that purpose, please consider our
straight knife option
Features
- 66" long adjustable infeed and outfeed tables provide more working surface
- Enlarged sheet metal stand provides a sturdy base
- Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
- Fence controls are center mounted for convenience
- Fine/quick adjustment lever on infeed table for precision cuts
- Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
- Push button switch is lockable to prevent accidental starting
Specifications
- Stock Number: PM9-1791317K
- Model Number: 54HH
- Warranty: 5 Year
- Type of Cutterhead: HELICAL
- Cutterhead Diameter (In.): 2-1/2
- Maximum Cutting Depth (In.): 1/8"
- Cutterhead Speed (RPM): 6000.0000
- Cutting Capacity (W x D) (In.): 6 x 1/2
- Dust Collection Minimum CFM Required (CFM): 450
- Dust Port Outside Diameter (In.): 4
- Infeed Table Length (In.): 32-1/2
- Number of Knives: 40
- Motor Power (HP): 1
- Motor Voltage (V.): 115/230
- Prewired Voltage (V.): 115
- Motor Phase: 1
- Motor Amps: 13/6.5
- Gross Weight: 336.0
- Net weight: 317.0
- Prop 65: Cancer and Reproductive Harm
| Brand | Powermatic |
|---|---|
| Warranty | 5 Year |
| Tool Type | Wood |
| Power | Single Phase |
