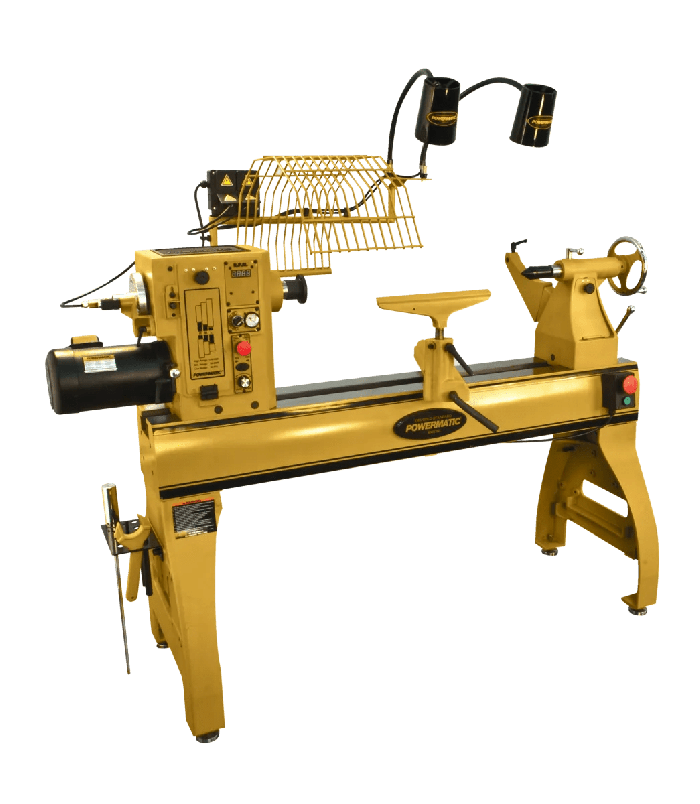

Powermatic 24" x 42" EVS Woodworking Lathe 3 HP 1Ph 230V (4224B) PM9-1794224K
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
Features
- 15 Amp quad receptacle for easy reach of powered accessories
- Vacuum system provides quick method of chucking bowl blanks
- Air nozzle with quick connect for clearing dust/chips
- Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
- Includes two 100W task lamps to provide ideal lighting and safety guard.
- Magnetic-backed moveable control box for versatility and safety
- Set of dead centers which hold a spindle for visual comparison
- Sliding headstock with electronic variable speed
- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
Specifications
- Stock Number: PM9-1794224K
- Bed Construction: Cast Iron
- Centerline of Spindle to Floor (In.): 44
- Distance Between Centers (In.): 42
- Input Power: 220V 1-Phase
- Model Number: 4224B
- Motor Amps: 10
- Motor (HP): 3 HP, 220V, 3Ph
- Motor Phase: 3
- Motor Power (HP): 3
- Motor Voltage (V.): 220
- Overall Dimensions (L x W x H) (In.): 89 x 28 x 65
- Prop 65: Cancer and Reproductive Harm
- Recommended Circuit Size (Amps.): 30
- Shipping Dimensions (L x W x H) (In.): 68 x 27 x 31.5
- Swing Over Bed (In.): 24
- Warranty: 5 Year
- Gross Weight: 960.0
- Net weight: 948.0
| Brand | Powermatic |
|---|---|
| Warranty | 5 Year |
| Tool Type | Wood |
| Power | 1/3 Phase |
Write Your Own Review
Download information Manual
