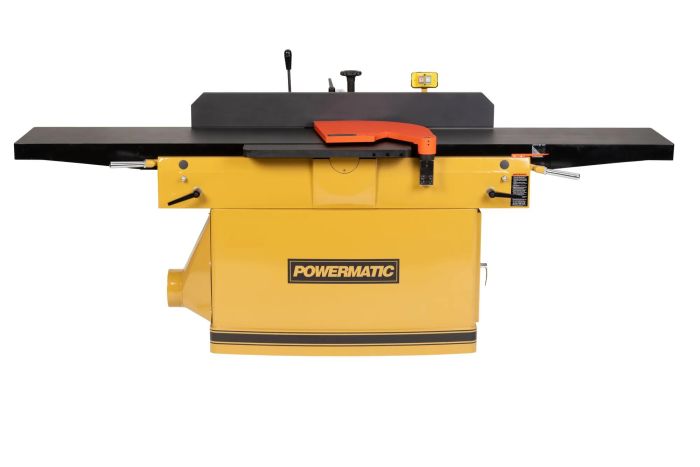

Powermatic 16-Inch Parallelogram Jointer with ArmorGlide Helical Cutterhead 7-1/2 HP 3Ph 460V (PJ1696T-4) PM1-1791283T-4
In Stock
SKU
PM1-1791283T-4
$15,729.00
Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T, 16-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large, center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set up at 45 degrees in and out, and a positive stop for perfect 90-degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.
This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2-HP motor delivers all the power you need for even the biggest jobs.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
- Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
- Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep
- Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change
- Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
- Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
- Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
- NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.
Specifications
- Stock Number: PM1-1791283T-4
- Model Number: PJ1696T
- Warranty: 5 Year
- Type of Cutterhead: Helical Head
- Cutterhead Diameter (In.): 4
- Maximum Cutting Depth (In.): 1/8"
- Cuts Per Minute: 20,800
- Cutterhead Speed (RPM): 5200.0000
- Cutting Capacity (W x D) (In.): 16 x 3/4
- Dust Collection Minimum CFM Required (CFM): 800
- Dust Port Outside Diameter (In.): 6
- Infeed Table Length (In.): 47-1/2
- Number of Knives: 58
- Motor Power (HP): 7-1/2
- Motor Voltage (V.): 460
- Prewired Voltage (V.): 460
- Motor Phase: 3
- Max.Rabbeting Capacity (In.): 3/4"
- Table Height from Floor (In.): 37-1/2
- Gross Weight: 1400.0
- Net weight: 1280.0
- Prop 65: Cancer and Reproductive Harm
| Brand | Powermatic |
|---|---|
| Voltage | 460 V |
| Sizes | 16" |
| Warranty | 5 Year |
| Armorglide | Armorglide |
| Tool Type | Wood |
| Power | 3 Phase |
