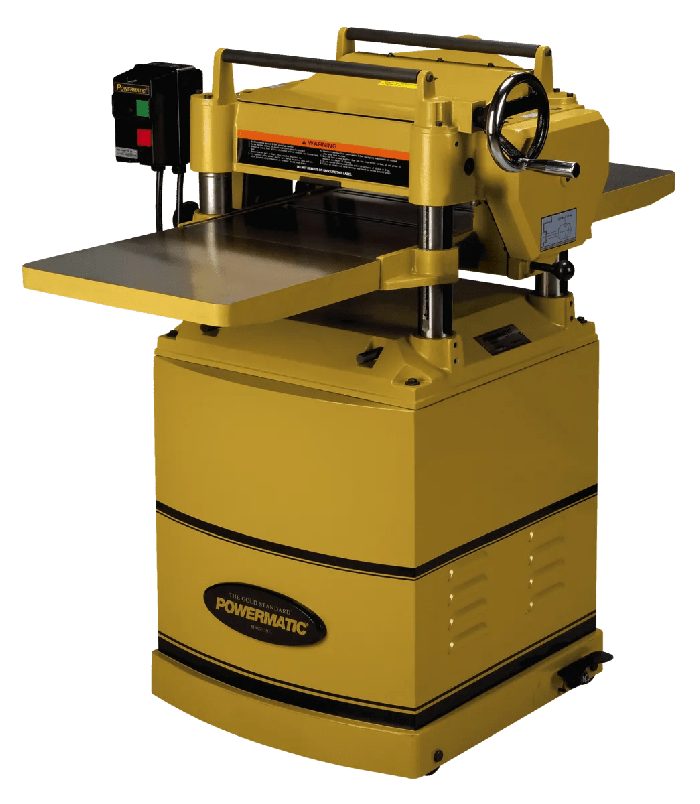

Powermatic 15HH15-Inch PlanerHelical Cutterhead3 HP1Ph 230V 1791213

Features

• Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
• Large cast iron handwheel positions table quickly and easily
• Large, precision ground cast iron table and extensions provide maximum workpiece support
• Lockable built-in caster system allows for mobility in the shop
• Steel top-mounted return rollers speed repetitive cuts
• The helical cutterhead with 74 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Three V-belts transfer maximum power to the cutterhead
• Two speed gearbox features automatic chain tensioner

Specifications

• Stock Number: PM9-1791213
• Cuts Per Minute: Not Applicable
• Cutterhead Diameter (In.): 2-7/8
• Cutterhead Speed (RPM): 4500.0000
• Dust Collection Minimum CFM Required (CFM): 800
• Dust Port Outside Diameter (In.): 4
• Feed Rate (FPM): 16/20
• Maximum Depth of Cut (In.): 3/16
• Maximum Full Width Depth of Cut (In.): 1/8
• Maximum Planing Thickness (In.): 6
• Maximum Planing Width (In.): 14-7/8
• Minimum Planing Length (In.): 8
• Model Number: 15HH
• Motor Amps: 15
• Motor Phase: 1
• Motor Power (HP): 3
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Recommended Circuit Size (Amps.): 30
• Style (Type): Floor
• Table Support: 4 Column
• Type of Cutterhead: HELICAL
• Warranty: 5 Year
• Gross Weight: 582.0
• Net weight: 568.0
