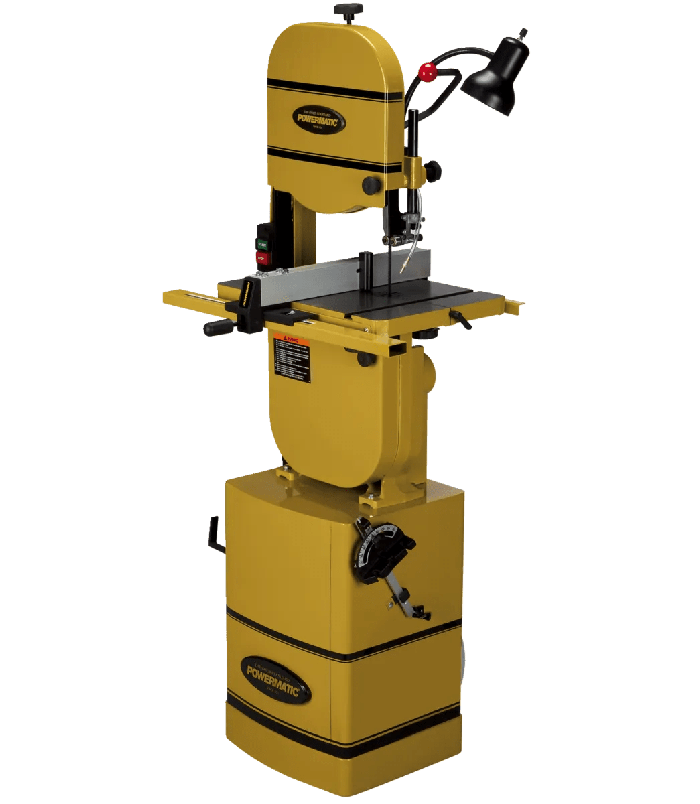

Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carterâ„¢ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Features
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Carterâ„¢ quick tension lever speeds blade changes and the detension setting extends blade life during non-use
- Chip blower ensures a clean, visible cut line
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
- Easy to read tensioning gauge settings indicated in "blade width" increments
- Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
- Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
- Rigid one-piece welded stand requires no assembly
- Upper and lower dual ball bearing guides for accurate cuts
Specifications
- Stock Number: PM9-1791216K
- Model Number: PWBS-14CS
- Warranty: 5 Year
- Band Saw Size/Wheel Diameter (In.): 14
- Blade Length (In.): 93-1/2
- Minimum Saw Blade Width (In.): 1/8
- Blade Speed (SFPM): 3000
- Dust Port Outside Diameter (In.): 4
- Dust Collection Minimum CFM Required (CFM): 600
- Table Tilt (Deg.): 45 Right / 10 Left
- Motor Power (HP): 1.5
- Motor Phase: 1
- Motor Voltage (V.): 115/230
- Prewired Voltage (V.): 115
- Recommended Circuit Size (Amps.): 30/20
- Table Height from Floor (In.): 44
- Prop 65: None
- Net weight: 250.0
- Gross Weight: 266.0
| M&M Recommendation | M&M Recommendation products |
|---|---|
| Brand | Powermatic |
| Warranty | 5 Year |
| Motor | 1.5 |
| Tool Type | Wood |
| Power | Single Phase |
| School Filter | School Products |
