Powermatic 12" Parallelogram Jointer with ArmorGlide Helical Cutterhead 3 HP 3Ph 460V (1285HHT-4) PM1-1791308T-4
In Stock
SKU
PM1-1791308T-4
$11,494.00

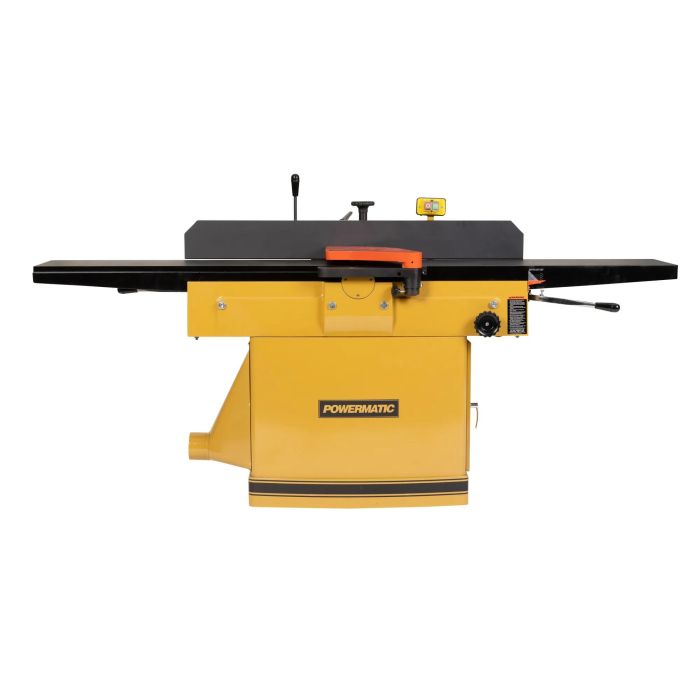

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T, 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 degrees in and out, and a positive stop for perfect 90-degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a straight knife cutterhead.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
- Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut
- Large 12" x 84" precision ground cast iron table surface for heavy-duty work
- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Table "lips" on both sides of cutterhead aid in noise reduction
- NOTE:The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.
Specifications
- Stock Number: PM1-1791308T-4
- Model Number: 1285T
- Warranty: 5 Year
- Type of Cutterhead: Helical Head
- Cutterhead Speed (RPM): 5000.0000
- Cutting Capacity (W x D) (In.): 11-3/4 x 3/4
- Dust Collection Minimum CFM Required (CFM): 800
- Dust Port Outside Diameter (In.): 4
- Number of Knives: 3
- Motor Power (HP): 3
- Motor Voltage (V.): 460
- Prewired Voltage (V.): 460
- Motor Phase: 3
- Motor Amps: 6.5
- Gross Weight: 880.0
- Net weight: 812.0
- Prop 65: Cancer and Reproductive Harm
| Brand | Powermatic |
|---|---|
| Voltage | 460 V |
| Sizes | 12" |
| Warranty | 5 Year |
| Armorglide | Armorglide |
| Tool Type | Wood |
| Power | 3 Phase |
