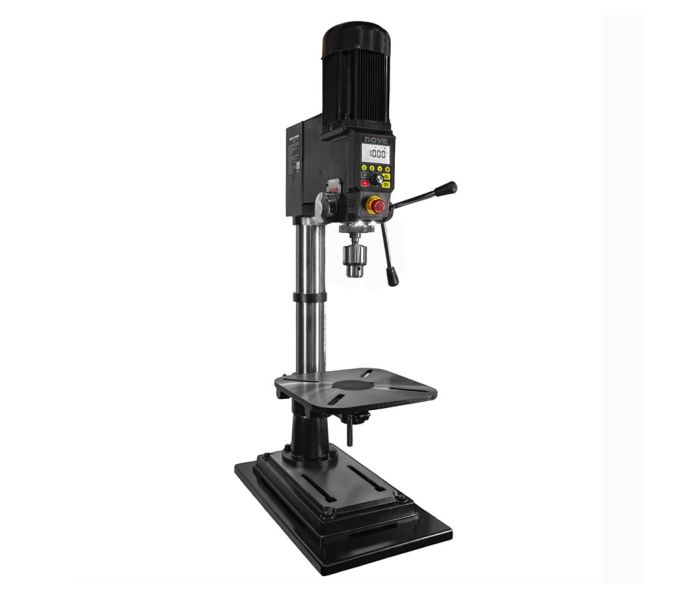

Nova Viking 16" DVR Bench Drill Press N-83700

Details

NOVA’s Viking 16” DVR Benchtop Drill Press is a 1HP, 150-3,000 RPM (programmable to 6,000) electronic variable speed machine, with a large easy to read display and a variety of intelligent features such as Auto Start feature for one handed drilling and Electronic Depth Stop. The built in LED lights, laser location makes it easy to see clearly and locate your center. The table can be tilted and rotated.

Features

1HP DVR Smart Digital Motor powered by STRIATECH delivers correct speed and power to maintain optimal torque direct to the drill head – across the entire speed range. No belts or pulleys to cause vibration or power loss.
A belt and pulley system absorb typically 20% of the motor power before it even gets to the tool. The DVR motor delivers constant torque with all materials.
led SMART DIGITAL MOTOR Smart sensors interacting in a number of ways – safety, intelligence workshop assist, and performance led BUILT IN LASER AND LIGHT Quickly locate center position with the cross haired laser. Two powerful LED lights to keep your project well lit.(This feature not available in all markets.)

Specifications

Variable Speed: 150 – 3,000 RPM (programmable to 6,000 RPM)
Swing: 16”
Stroke: 4.5”
Spindle to Table: 12 2/3″ (320mm)
Spindle to base: 22 2/3″ (575mm)
rill Chuck: 5/8” (1-16mm)
Spindle Taper: 2MT
Quill: 4.5” of quill travel in just 1 1/4 revolutions of the handle, which allows for far greater accuracy.
Motor: DVR High Torque 1HP motor, Electronic Variable Speed. 1HP Direct Drive; Single Phase Input Supply.110V-220V, MAX 10A-15A, 50Hz/60HzWeight: 154lbs/68.85kgs

More Information

More Information
Brand	Nova
