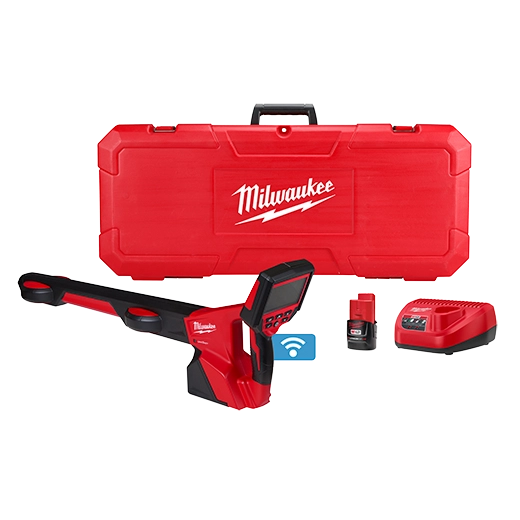

Milwaukee M12™ Pipeline Locator Kit 2580-21

Product Overview Our M12AA¢ Pipeline Locator provides the most intuitive plumbing locating experience, simplifying the process of pinpointing sewer camera sondes and tracing underground sewer lines. A directional arrow appears on screen upon startup, immediately pointing in the direction of the sonde and eliminating the need to guess and check which direction to start. Once in range, a sonde icon appears on screen, confirming the exact location of the sonde. Dual 3D antennas eliminate false peaks and increase both sensitivity and precision, making it easier to locate than ever before. Featuring a 4.3A¢A‚¬A color LCD display, the locator simplifies navigation and provides a clear on-screen image even in direct sunlight. The locator is IP 65 rated for durability in harsh, outdoor working environments. Powered by M12AA¢ REDLITHIUM batteries, the M12AA¢ Pipeline Locator delivers all-day runtime on a single charge. The locator is equipped with ONE KEYAA¢ tracking, security, and inventory management to protect your investment. Directional Icons Eliminate Guess & Check Read Signals Clearly on 4.3A¢A‚¬A LCD Display 360 Degree Guidance Arrow provides Fast, Accurate Guidance Upon Start Up On-Screen Sonde Icon Confirms SondeA¢A‚¬A„¢s Exact Location Line Trace Mode: Compass Icon Follows Energized Line Two 3D Antennas for precise locating Onboard Controls: Quickly Switch between locating modes Calibration Test Monitors ToolA¢A‚¬A„¢s Accuracy Daylight Readable Screen for Optimal Outdoor Viewing IP65 Rated: Survives Harsh Jobsite Conditions One-KeyAA¢ Tracking, Security, & Inventory Management

Features:

• Directional Icons Eliminate Guess & Check
• Read Signals Clearly on 4.3A¢A‚¬A LCD Display
• 360 Degree Guidance Arrow provides Fast, Accurate Guidance Upon Start Up
• On-Screen Sonde Icon Confirms SondeA¢A‚¬A„¢s Exact Location
• Line Trace Mode: Compass Icon Follows Energized Line
• Two 3D Antennas for precise locating
• Onboard Controls: Quickly Switch between locating modes
• Calibration Test Monitors ToolA¢A‚¬A„¢s Accuracy
• Daylight Readable Screen for Optimal Outdoor Viewing
• IP65 Rated: Survives Harsh Jobsite Conditions
• One-KeyAA¢ Tracking, Security, & Inventory Management

Specifications:

• Battery System: M12
• Battery Type: M12AA¢
• Display Type: 4.3" Color LCD Display
• Sonde Frequencies: 512 HZ, 640 Hz, 33 KHz
• Line Trace Frequency: 33kHz, 83kHz
• Power Frequency: 50Hz, 60Hz
• Radio Frequency: 10kHz - 22.7kHz Bandwidth
• Power Source: Cordless
