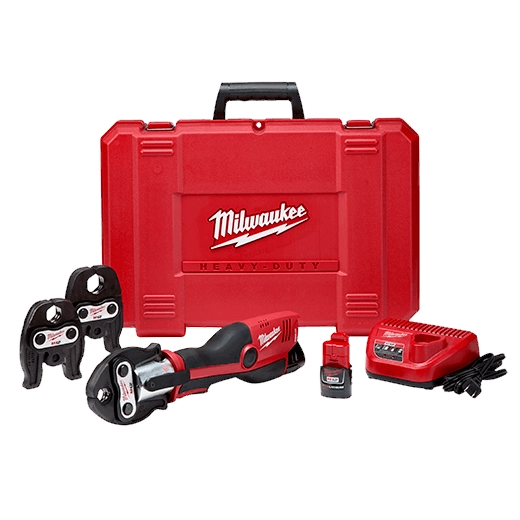

Milwaukee M12™ FORCE LOGIC™ Press Tool Kit with Jaws 2473-22

Product Overview Our M12AA¢ FORCE LOGICAA¢ Press Tool Kit with Jaws is the lightest press tool on the market and represents a new level in portability and accessibility around installed pipe. The M12AA¢ press tool features a one-handed, in-line design enabling you to operate the tool nearly anywhere you can fit your arm. Built-in REDLINKAA¢ technology enables the plumbing press tool to monitor the force output, delivering you with quality connections. A visual indicator alerts you when a secure connection has been achieved and when the tool needs calibration. The cordless press tool features the best calibration standards, only requiring service every 32,000 crimps. This allows you to perform up to 4X more connections between services, keeping the tool on the job site up to 4X longer than competitive units. When used with our MILWAUKEEA‚A® press jaws, this tool delivers quality press connections on all major fitting brands. Our FORCE LOGICAA¢ press tool is powered by Milwaukee M12AA¢ REDLITHIUMAA¢ batteries, allowing you to Cut, Fasten and Connect on One System. In addition to the press tool, this kit includes two M12AA¢ REDLITHIUMAA¢ CP1.5 battery packs, 1/2 in., 3/4 in. and 1 in. copper jaws, an M12AA¢ REDLITHIUMAA¢ Charger, and a carrying case. Smallest and lightest at 3.8 lbs. with up to 5,400 lbs. of force Balanced, in-line design suitable for one-handed use Enables Connections on Copper, PEX, Black Iron, Stainless Steel, & more Features the best calibration standard in the industry Batteries recharge in 30 minutes Cut, fasten and connect all on one system Performs 32,000 crimps between service inspections 5-year tool, 2-year battery warranty Compatible with all M12AA¢ batteries & chargers

Features:

• Smallest and lightest at 3.8 lbs. with up to 5,400 lbs. of force
• Balanced, in-line design suitable for one-handed use
• Enables Connections on Copper, PEX, Black Iron, Stainless Steel, & more
• Features the best calibration standard in the industry
• Batteries recharge in 30 minutes
• Cut, fasten and connect all on one system
• Performs 32,000 crimps between service inspections
• 5-year tool, 2-year battery warranty
• Compatible with all M12AA¢ batteries & chargers

Specifications:

• Battery System: M12AA¢
• Height: 21.5 in
• Length: 12.6 in
• Width: 2.75 in
• Brand Model Compatibility: Milwaukee
• Brushless Motor: No
• Color: Black, Red
• FUELAA¢: No
• Material: Polycarbonate, Plastic, Rubber, Steel
• Motor Type: Not Applicable
• Weight: 3.8 lb
• Number of Pieces Included: 1
• ONE-KEYAA¢ Enabled: No
• Warranty: 5 Year Tool, 2 Year Battery
