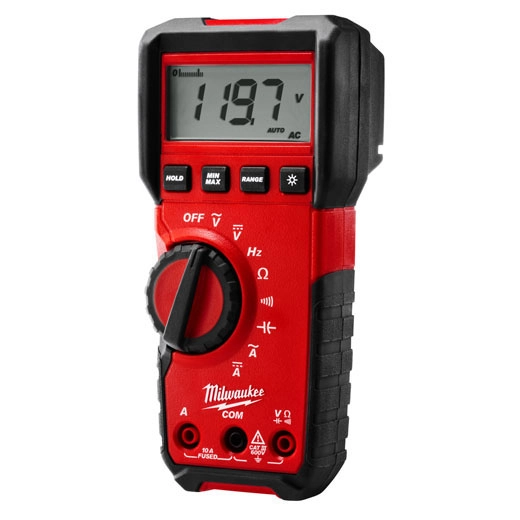

Milwaukee Digital Multimeter 2216-20

Product Overview Heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 Digital Multimeter features: True RMS measurement to accurately measure all applications; CATIII 600V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 volts; DC voltage range of 600 millivolts to 600 volts DC; Resistance measurement from 600 ohms to 40 Mohm; frequency measurement from 10Hz to 50 kilohertz; detects continuity at less than 30 ohms; Current measurement to 10amps AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories; includes one (1) test lead set, two (2) AA batteries, and manual; covered by 5 year warranty. Nothing but HEAVY DUTY. Auto Range to mV Capacitance to 1000 μF CAT III 600V for increased safety Current Measurement to 10A AC/DC Frequency measurements from 10Hz to 50kHz Resistance range from 600 ohm to 40 Mohm Rugged over-molding increases durability and user grip True-RMS for accurate measurement in all applications Wide Voltage range to 600 AC /DC volts

Features:

• Auto Range to mV
• Capacitance to 1000 μF
• CAT III 600V for increased safety
• Current Measurement to 10A AC/DC
• Frequency measurements from 10Hz to 50kHz
• Resistance range from 600 ohm to 40 Mohm
• Rugged over-molding increases durability and user grip
• True-RMS for accurate measurement in all applications
• Wide Voltage range to 600 AC /DC volts

Specifications:

• Tool Warranty: 5 Years
• Battery Type: Alkaline (AA)
• Display Type: Digital
• Switch Type: Dial
• Material Composition: Plastic
• Length: 10.55 in
• Weight: 1.38 lb
• Height: 2.7 in
• Width: 6.05 in
• TRMS: Yes
• Current AC DC: 10.00A
• Frequency: 2.00 Hz - 50.00 kHz
• Resistance: 40MΩ
• Continuity: Audible
• Capacitance: 1,000μF
• Safety Category Rating: CAT III 600V
• Voltage AC: 6.00mV - 600V
• Voltage DC: 600.0mV - 600V
• Backlight: Yes
• HOLD MIN MAX: Yes
• Bargraph: Yes
• Rugged Overmolding: Yes
• Accessory Attachment: Magnetic Meter Holder
• Calibration Needed: Yes - Recommend calibration service once every year
