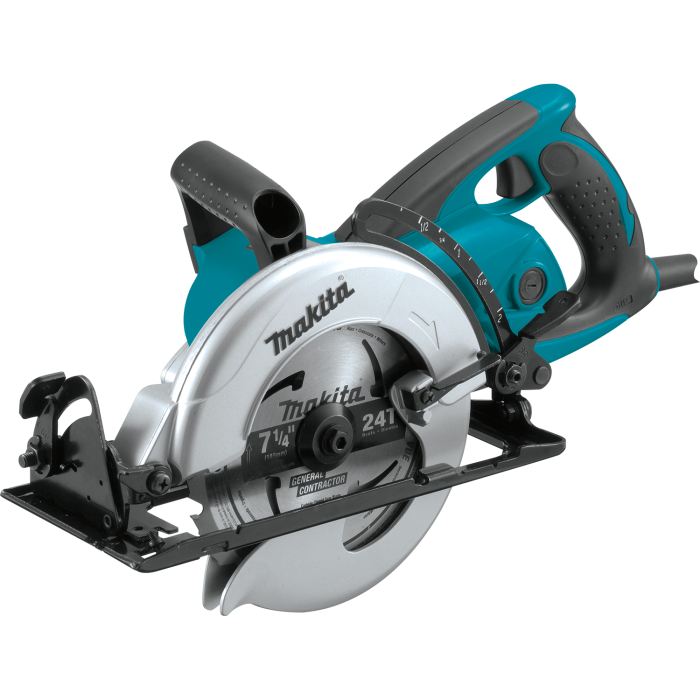

Makita™s 7-1/4-Inch Hypoid Saw (model 5477NB), combines a powerful 15 AMP motor and Makita™s efficient hypoid gears with ease-of-use features for more power, better performance and superior cuts. The 5477NB is engineered for framing walls, siding, roofs and floors using a range of dimensional lumber and engineered lumber, including OSB, LVL, PSL, plywood, and more. It is ideal for framers, builders, carpenters, and general contractors seeking a best-in-class 7-1/4-Inch hypoid saw.
Features:
- Hypoid gears deliver more power and have greater surface contact than conventional worm drive gears
- Powerful 15 AMP motor for increased productivity
- Oil bath technology and sealed gear housing for less maintenance
- 0A°-51.5A° bevel capacity with positive stops at 45A° and 51.5A° is ideal for truss and rafter cut-outs
- High quality, heat treated hypoid gears are engineered for long lasting performance
- Large cutting capacity (2-3/8" at 90A°; 1-3/4" at 45A° and 1-9/16" at 50A°)
- Lower guard design improves performance when making bevel and narrow cuts
- Oversized top handle for better fit and added comfort
- Large levers for fast bevel and depth adjustments
- Push button spindle lock for easy blade changes
Specifications:
- Blade Diameter: 7-1/4"
- Arbor: 5/8"
- Max. Cutting Capacity (at 90A°): 2-3/8"
- Max. Cutting Capacity (at 45A°): 1-3/4"
- Max. Cutting Capacity (at 50A°): 1-9/16"
- No Load Speed: 4,500 RPM
- Watts Out: 2,300
- AMPS: 15
- Overall Length: 17-3/8"
- Net Weight: 14.3 lbs.
- Power Type: Corded
- Packaged Depth (in): 9.65"
- Packaged Height (in): 12.2"
- Packaged Width (in): 20.87"
- Shipping Weight: 18.07 lbs.
- UPC Code: 088381-096133
Includes:
- (1) 7-1/4" 24T Framing Blade, General Contractor (D-45989-1)
- (1) Hex Wrench (783204-6)
| Brand | Makita |
|---|---|
| Voltage | 18 V |
