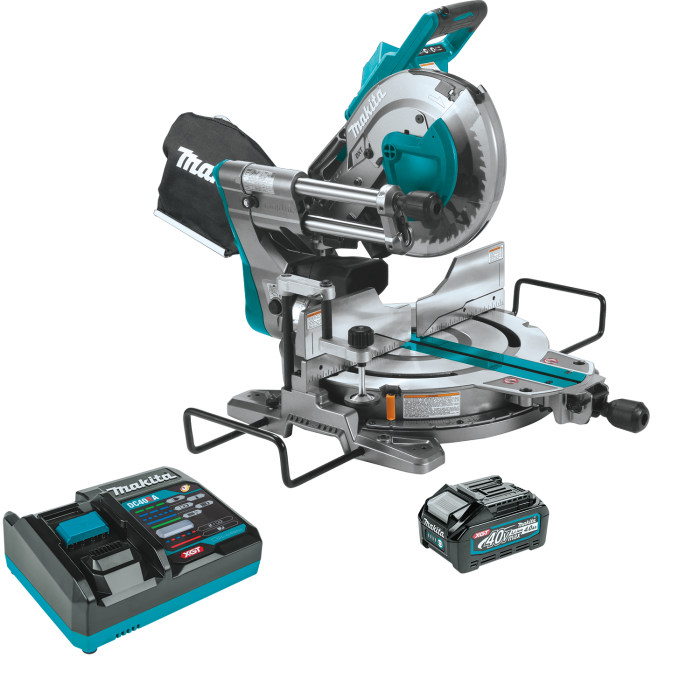

Makita 40V max XGTA® Brushless Cordless 10" Dual-Bevel Sliding Compound Miter Saw Kit, AWSA® Capable (4.0Ah) GSL03M1
The 40V max XGTA® Brushless 10 Dual-Bevel Sliding Compound Miter Saw Kit (GSL03M1) delivers faster and smoother cutting. The rail-forward design maximizes workspace when the miter saw is positioned flush against a wall. The miter saw has a large 2-13/16 x 12 cutting capacity at 90-degrees. The saw miters 0A° to 60A° left and right and bevels from 0A° to 48A° (left and right).
Features:
- OUTPOWER: Makita-built brushless motor delivers 3,600 RPM for faster cutting performance
- OUTSMART: The digital communication within XGTA® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- OUTLAST: The digital communication within XGTA® actively monitors and protects against overload, over-discharge and overheating
- Large 2-13/16 x 12 cutting capacity at 90A°; cuts up to 6-5/8" crown molding (vertically nested) and 5-1/4" baseboard (vertical)
- Bevels 0-48A° left and right; Miters 0-60A° left and right, with positive stops at 0A°, 15A°, 22.5A°, 30A°, 31.6A°, 45A°, and 60A° left and right
- Extension wings for cutting longer material; retractable for more compact storage
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Electric brake for maximum productivity
- Bevel angle lock and release dial at front of tool for easy access and repositioning
- Auto-start wireless System (AWSA®) utilizes Bluetooth technology for wireless on-off communication between the tool and dust extractor
Specifications:
- Blade Diameter: 10"
- Arbor: 5/8"
- Max. Cutting Capacity (miter 90A°): 2-13/16" x 12"
- Max. Cutting Capacity (miter 45A°, L/R): 2-13/16" x 8-1/2"
- No Load Speed: 3,600 RPM
- Automatic-start Wireless System (AWSA®): Capable (transmitter sold separately)
- Dimensions (LxWxH): 31-3/4" x 25-3/8" x 26"
- Net Weight (with battery): 60 lbs.
- Power Type: Cordless
- Packaged Depth (in): 22.28"
- Packaged Height (in): 21.26"
- Packaged Width (in): 32.44"
- Shipping Weight: 81.59 lbs.
- UPC Code: 088381-748537
Includes:
- (1) 40V max XGTA® Brushless 10" Dual-Bevel Sliding Compound Miter Saw, AWSA® Capable, Tool Only (GSL03Z)
- (1) 40V max XGTA® 4.0Ah Battery (BL4040)
- (1) 40V max XGTA® Rapid Optimum Charger (DC40RA)
- (1) Vertical Vise (126617-2)
- (1) Triangular Rule (762001-3)
- (1) 10" 45T Carbide-Tipped Max Efficiency Miter Saw Blade (B-62103)
- (1) Dust Bag (122852-0)
- (1) Hex Wrench (781044-6)
| Brand | Makita |
|---|---|
| Voltage | 40 V |
| Cordless / Corded | Cordless |
| Bare Tool | Kit |
