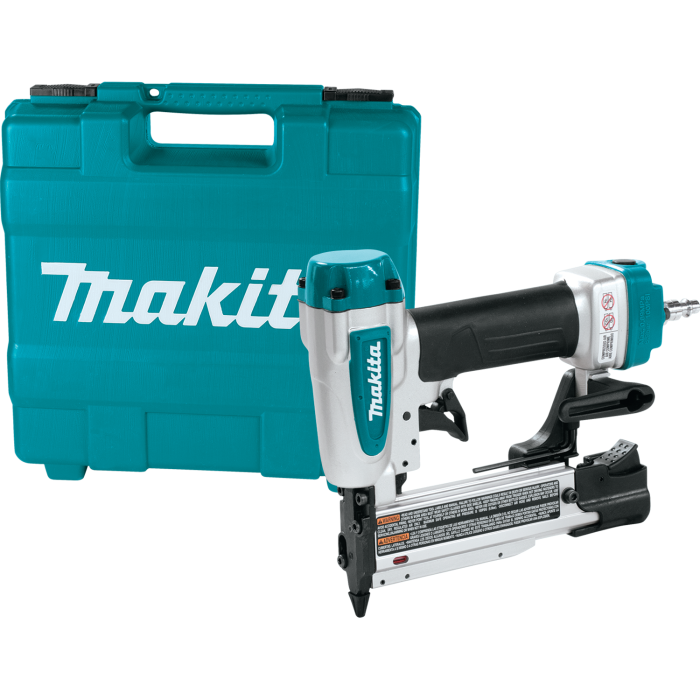

Makita 23 Gauge, 1A-3/8" Pin Nailer AF353

makita
In Stock
SKU
AF353
$189.00
đźšš The product will be shipped today.

The Makita 23 Gauge Pin Nailer (model AF353) offers an array of features and powerful performance in a compact size. The AF353 has a side, drop-in loading magazine that accepts standard 23 ga. headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16", and 1-3/8". The nail lock-out and red window alerts the user when to reload pins as the 2-finger trigger is used for controlled firing. With a compact size and weighing in at only 2 lbs., the AF353 was engineered for all-day professional use ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels & joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a whole host of other woodworking applications. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a rear exhaust port that directs exhaust air away from the user and work surface, a built-in air duster that provides convenient air flow to clear your workspace, and 2 removable no-mar tips with sightlines for increased pinning accuracy.


Features:
  • Powerful motor drives standard headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16" and 1-3/8"
  • Aluminum body, magazine and cylinder for strength and durability; weighs only 2 lbs.
  • Nail lock-out mechanism protects tool and work surface from pin-less blank fires (dry-fires)
  • Side, drop-in loading magazine holds up to 130 nails for maximum efficiency
  • Built-in air duster provides convenient air flow to clear work surface
  • Double, 2-finger trigger for user convenience
  • Rear exhaust port directs exhaust air away from operator and work surface
  • Includes two removable no-mar tips with sightlines for increased pinning accuracy; convenient on tool storage
  • Easy to clear nose for fast and easy nail extraction should a jam occur
  • Narrow nose design allows easy nailing access to tight areas and angles

Specifications:
  • Power Type: Pneumatic
  • Operating Air Pressure (PSI): 65 - 100
  • Minimum Recommended Air Delivery: .8 SCFM @ 90 PSI
  • Nail Size: 5/8", 11/16", Âľ", 1", 1-3/16", 1-3/8" (23 ga.)
  • Maximum Magazine Capacity: 130
  • Fastening category: Pin
  • Dimensions (LxWxH): 8-3/16" x 2-5/8" x 7-1/2"
  • Net Weight: 2 lbs.
  • Industrial Style Fitting Included: 1/4" NPT x 1/4"
  • Inlet Size: 1/4" NPT
  • Operating Air Pressure (Bar): 4.9 - 8.3
  • Air Fitting Included: Yes
  • Packaged Depth (in): 4.8"
  • Packaged Height (in): 13.86"
  • Packaged Width (in): 13.62"
  • Shipping Weight: 6.39 lbs.
  • UPC Code: 088381-822428

Includes:
  • (1) Pneumatic Nailer Oil (181434-7)
  • (1) Safety Glasses
  • (2) No-Mar Tip
  • (1) Air Fitting
  • (1) Hex Wrench
  • (1) Tool Case
