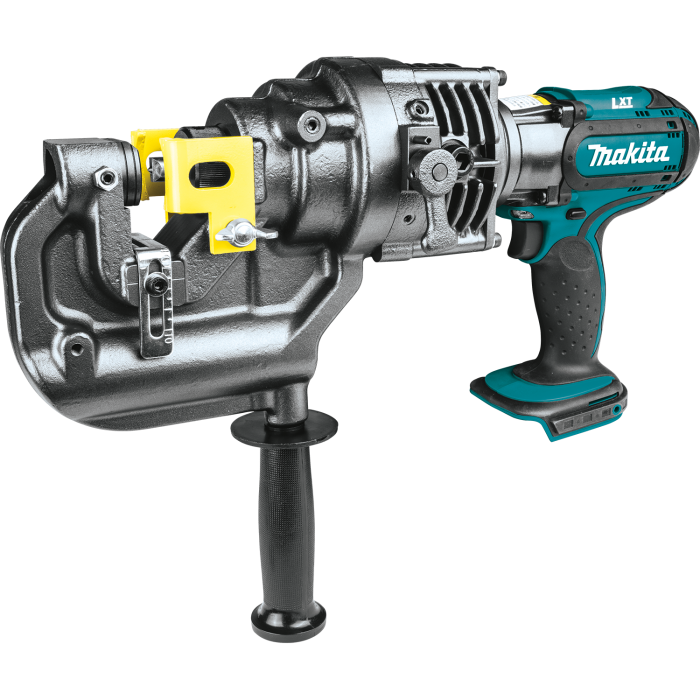

Makita 18V LXTA? Lithium-Ion Cordless 5/16" Metal Hole Puncher, Tool Only XPP01ZK

Visit Makita Brand Store
makita
Be the first to review this product
In Stock
SKU
XPP01ZK
$2,949.00
Notify me when the price drops
ⓘ Special Order
Special Order ✕
This item is temporarily out of stock, and is expected to ship within 6–8 business days after ordering.
Add to Compare

Punch holes in A¼A metal in under 5 seconds with the 18V LXTA® Lithium-Ion Cordless 5/16" Hole Puncher, Tool Only (XPP01ZK). The XPP01ZK allows hole punching with complete cordless mobility. It can punch up to 180 20MM (25/32A) diameter holes in 15/64A thick steel with a 5.0Ah 18V LXT Battery (sold separately). The punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation. For select applications, hole punching just became fast and effortless!


Features:
  • Makita 18V LXTA® Lithium-Ion battery allows for complete cordless hole punching mobility without the hassles of a cord
  • Punches up to (180) 25/32" diameter holes in 1/4" thick steel with a 5.0Ah 18V LXTA® Battery (battery not included)*
  • Punch stop mechanism automatically retracts the die once a punch is complete to quickly continue operation
  • Grip handle rotates 360A° allowing for optimal positioning in a variety of spaces
  • Adjustable depth guide allows for punch location adjustment up to 1-37/64" (40 mm) from the edge of the workpiece
  • Max metal plate thickness capacity of 5/16" in general steel and 15/64" in stainless steel
  • Return lever allows for the punch to be retracted during mid operation
  • Fast and effortless hole punching speed in under 5 seconds
  • Ergonomic pistol grip handle with rubberized soft grip provides increased comfort on the job
  • Built-in L.E.D. light illuminates the work area

Specifications:
  • Battery: 18V LXTA® Lithium-Ion
  • Maximum Hole Diameter (Round): 25/32"
  • Maximum Hole Diameter (Oblong): 9/16" x 53/64"
  • Max. Hole Depth: 5/16"
  • Maximum Throat Depth (in.): 1-37/64"
  • Overall Length: 12-27/64"
  • Net Weight (with battery): 23.8 lbs.
  • Power Type: Cordless
  • Packaged Depth (in): 19.69"
  • Packaged Height (in): 8.66"
  • Packaged Width (in): 23.03"
  • Form Factor (LXT): 18V LXTA®
  • Motor Type: Brushed
  • Shipping Weight: 35.28 lbs.
  • UPC Code: 088381-896269

Includes:
  • (1) Round Punch, 15/32" (12 mm), XPP01 (SC05340100)
  • (1) Round Die, 15/32" (12 mm) - SB, XPP01 (SC00000215)
  • (1) Oil, 35 ml (SC00000106)
  • (1) Hex Wrench, 3mm (SC00000103)
  • (1) Hex Wrench, 4mm (SC00000104)
  • (1) Hex Wrench 8mm
  • (1) Spanner Wrench 8mm/10mm (SC00000166)
  • (1) Nut Bar (SC03505300)
  • (1) Side Handle (SC00000155)
  • (1) Tool Case
