Makita 12V max CXTA® Lithium-Ion Cordless Self-Leveling Cross-Line/4-Point Green Beam Laser Kit (2.0Ah) SK106GDNAX
Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita 12V max CXT® Lithium-Ion Self-Leveling Cross-Line/4-Point Green Beam Laser (SK106GDWAX) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb, and square applications. Depending on ambient light in the working environment, the SK106GDZ has a line visibility range up to 115' and is detectable up to 262’ with a Makita Laser Detector (sold separately).
Features:
- Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications
- Up to 10 hours of continuous run time using included Makita 12V max CXT® 2.0Ah rechargeable battery; up to 20 hours of continuous run time using a 12V max CXT® 4.0Ah battery
- Green line visibility range up to 115’ depending on ambient light and detectable up to 262' with Makita Laser Detector
- Bright 525 nm class II green laser for best-in-class visibility with +/-1/8†at 33’ for best-in-class accuracy
- Laser line fan angle spans past the 180° horizontal line and 170° vertical line positions for full reference line coverage
- Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
- Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
- Dust and water resistance with IP 54 rating for increased durability
- Highly protected laser windows are recessed into the housing for increased durability
Specifications:
- Line accuracy (at 33'): +/- 1/8"
- Point beam direction: 4 points (up, down, left, right)
- Line beam direction: 2 line (horizontal, vertical)
- Working range (line): 115'
- Working Range with Detector: 262'
- Operating time (hours): 10
- Laser diode: Class II, 510-530 nm
- Levelling range: 4°
- Debris resistance: IP54 rating (dust & water resistance)
- Battery: 12V max CXT® Lithium-Ion
- Auto shut off: No
- Net Weight: 1.9 lbs.
- Laser Beam Color: Green
- Packaged Depth (in): 8"
- Packaged Height (in): 6"
- Packaged Width (in): 13.25"
- Shipping Weight: 6.8 lbs.
- UPC Code: 088381-878203

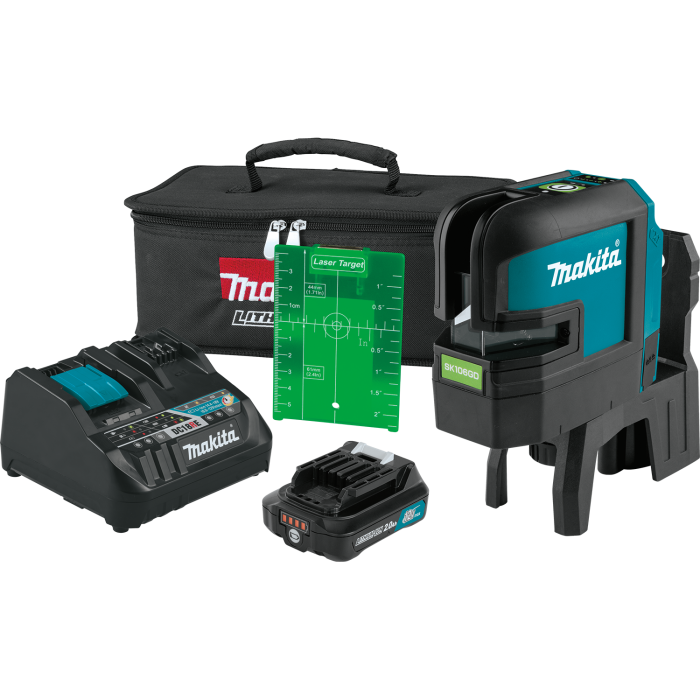

Includes:
- (1) 12V max CXT® Self-Leveling Cross-Line/4-Point Green Beam Laser (SK106GDZ)
- (1) 12V max CXT® Lithium-Ion 2.0Ah Battery (BL1021B)
- (1) 18V LXT® / 12V max CXT® Lithium-Ion Rapid Optimum Charger (DC18RE)
- (1) Magnetic PRO L-Adapter (LE00870134)
- (1) Magnetic Green Target Plate (LE00823195)
- (1) Laser Kit Bag (832173-9)
| Brand | Makita |
|---|---|
| Cordless / Corded | Cordless |
| Bare Tool | Kit |
