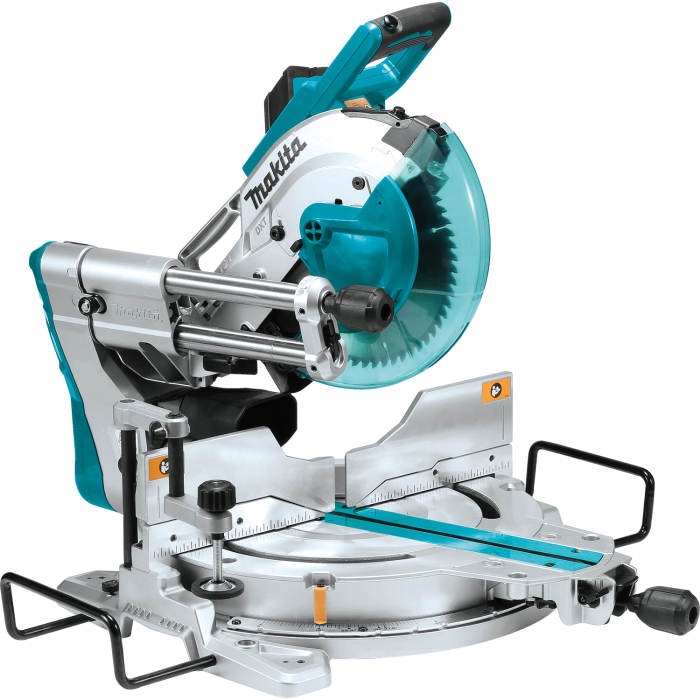

The Makita 10 Dual-Bevel Sliding Compound Miter Saw with Laser (model LS1019L) combines capacity, accuracy and efficient dust extraction in a more compact size, with a unique 2-Steel Rail Sliding System that offers a reduced footprint for operation flush against a wall. The innovative direct-drive gearbox and guard system is engineered for increased vertical cutting capacity of baseboard (5-1/4) and crown molding (6-5/8 nested), the largest in its class. It will also crosscut a 4x12 at 90 degrees. The saw miters 0A° to 60A° left and right, with positive stops at 0A°, 15A°, 22.5A°, 31.6A°, 45A° and 60A° (left or right). The bevel lock is located in the front of the saw for easy access and quick adjustments from 0A° to 48A° (left and right).
Features:
- 10" slide miter saw with the crown molding cutting capacity (6-5/8" nested) of a 12" miter saw
- Unique 2-Steel Rail Sliding System design offers single slide-glide operation; reduced saw footprint allows operation flush against a wall
- Increased capacity for up to 6-5/8" crown molding (vertically nested), 5-1/4" baseboard (vertical), and 12" crosscuts at 90A°
- In-front bevel lock for convenient operation
- Dual dust collection ports provide excellent dust extraction performance
- Innovative direct drive motor and guard system is engineered for increased vertical cutting capacity (5-1/4")
- Linear ball bearing system engineered to deliver "dead-on" accurate cuts
- Less weight (57.9 lbs.) and the most compact design in its class for easy jobsite portability
- Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM
- Large-sized aluminum base improves stability of material for efficient cutting
Specifications:
- Blade Diameter: 10"
- Arbor: 5/8"
- Max. Cutting Capacity (miter 90A°): 2-13/16" x 12"
- Max. Cutting Capacity (miter 45A°, L/R): 2-13/16" x 8-1/2"
- No Load Speed: 3,200 RPM
- Dimensions (LxWxH): 31-3/4" x 25-3/8" x 26"
- Net Weight: 57.9 lbs.
- Packaged Depth (in): 22.047"
- Packaged Height (in): 21.654"
- Packaged Width (in): 32.677"
- Shipping Weight: 72.765 lbs.
- UPC Code: 088381-843980
Includes:
- (1) Vertical Vise (122854-6)
- (1) Dust Bag (122852-0)
- (1) Triangular Rule (762001-3)
- (1) 10" x 5/8" 60T Micro-Polished Miter Saw Blade
- (1) Hex Wrench (781044-6)
| M&M Recommendation | M&M Recommendation products |
|---|---|
| Brand | Makita |
| Voltage | 18 V |
| Cordless / Corded | Cordless |
