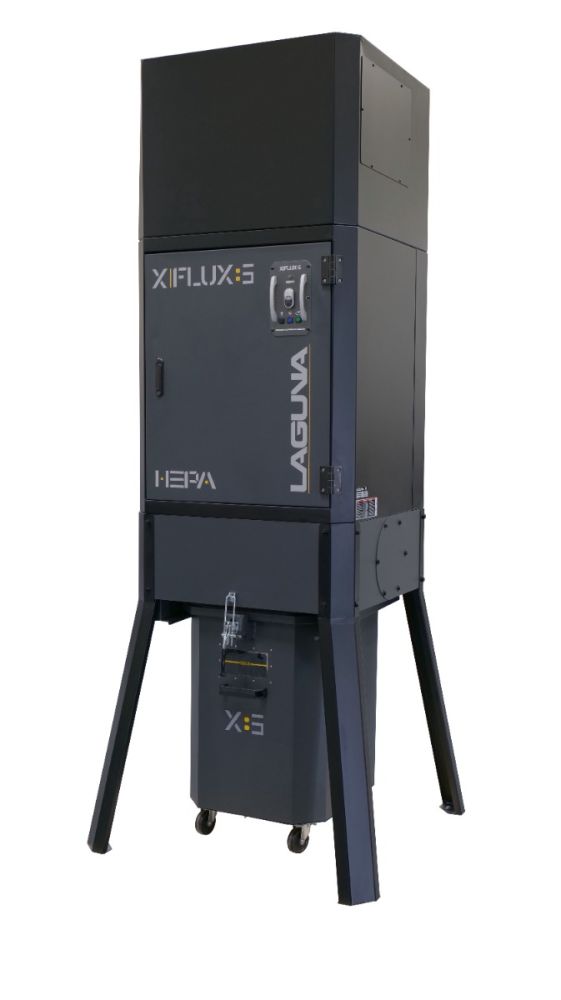

Laguna X|FLUX: 5 MDCXF52201

Features

• Motor HP: 5 HP
• Air Flow: 1823 CFM
• Collection Capacity: 39 Gallon Octagon Drum

Specifications

• Motor Specs: 5HP
• Electrical Specs: 220V, 60Hz, 1PH, 3450 RPM
• Running AMP: 18.5A at 220V (8″ Inlet)
• Air Volume: 1823 CFM
• Max Static Pressure: 12″
• Fan Size: 14.5″
• Inlet: 8″
• Decibel Reading: 69 dBA (@9.8ft)
• Remote Control: High Frequency
• Assembled Dimensions (L x W x H): 36″ x 38″ x 91″
• Packing Size (L x W x H): 35.4″ x 28.3″ x 81.5″ (90 x 72 x 207 cm)
• Machine Weight: 456 lbs (207 kg)
• Shipping Weight: 544 lbs (247 kg)

Filter Specs

• Filtering Area: 32.3 sq/ft (3 sq/m)
• Cartridge Filter*: HEPA, 19.7″ x 19.7″ (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron @ 99.7% Efficiency)

*The non-stick PTFE membrane may show minor wear after 200,000 cycles where the cleaning paddles contact the filter media, but this does not significantly affect filtration efficiency. HEPA filter media is independently tested by an accredited 3rd party (TTRI) and designed with wide-spaced pleating to maintain optimal performance throughout its lifespan.
