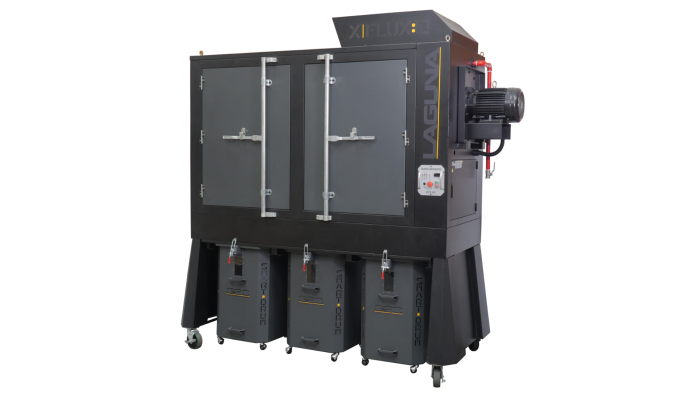

The X|Flux dust collector is your solution for high filtration efficiency in large shops and enclosed areas. Designed for performance and convenience, it keeps your shop clean while capturing 99.97% of fine dust particles.
Features
- Motor: 10 HP
- Phase: 3
- Voltage: 220V
- Amps: 28
- Recommended Breaker: 50 AMP
- Hertz: 60
- Plug: None
- RPM: 3450
- Main Motor Switch: Radio Frequency
- Control Panel: Anodized Aluminum
- Hand Held Remote Control: HF (High Frequency)
- LED Warning Light for Empty Drum
- Canister Auto Clean: Timer controlled
Specifications
- Shop Setting CFM: 4700
- Inlet CFM: 8070
- Max Static Pressure: 11″ H₂O
- Impeller/Fan Size: 15-½″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balanced To: ISO 1940
- Inlet Diameter: 12″
- Drum Capacity: 54 Gal x 3
- Octagon Drum: Low Pressure Suction, Swiveling Casters
- Drum Collection Bag (Dia. x L): 29″ x 51″
- Canister Filter Type: White 1 Micron
- Filtration Efficiency: 0.2–2 Micron (@99.97%)
- MERV Rating: 12
- Canister Diameter: 500 mm (19.69″)
- Canister Length: 900 mm (35.43″)
- Canister Cleaning: Timed Auto Clean, 2 x 10 sec per work hour
- Lower Canister Dust Collection Bag: 29″ x 24″
- Wheels: 6″ Industrial Swiveling
- US/CSA Approved
- Decibel Reading: 80 dB(A) (@9.8 ft)
- Assembled Dimensions (L x W x H): 104″ x 49″ x 106″
- Machine Weight: 750 kg / 1653 lbs
- Shipping Weight: 830 kg / 1829 lbs
| Brand | Laguna |
|---|---|
| Tool Type | Wood |
