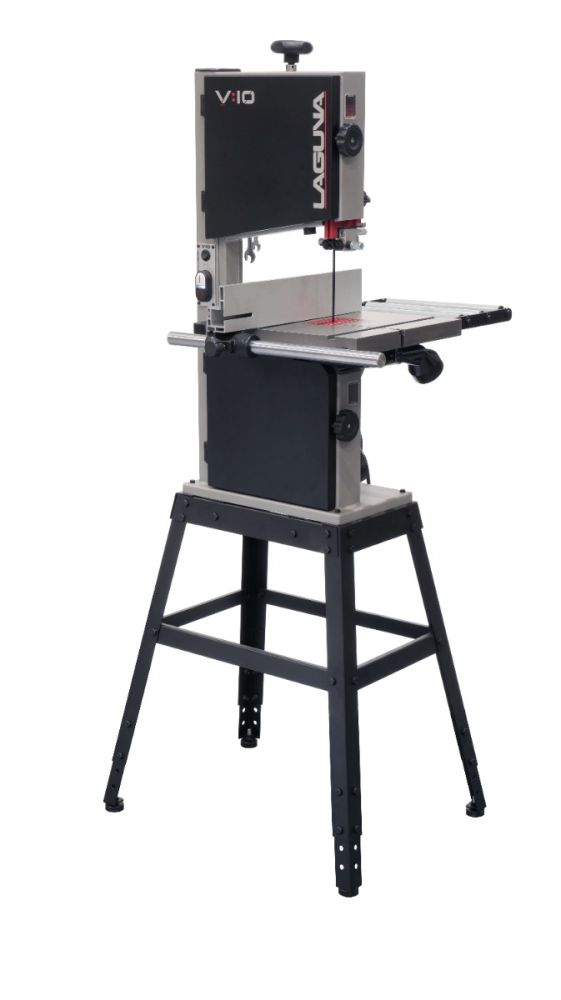

Recalibrating All 10” Bandsaws. The All-New Laguna V:10 bandsaw leads the competition with many Best-In-Class features for 10” bandsaws. Our smallest bandsaw is loaded with innovative features normally found in larger machines. These features along with the superior performance of the V:10 make it the best value for the price in 10” bandsaws.
Features
- Quick-release magnetic under-table dust port
- Perforated Throat-Plate Insert with levelling screws
- Roller Bearing blade guides with micro-adjustment
- Hi/Low fence with solid steel rail
- Dual blade tracking windows
- Quick-release blade tension lever
- Dual blade speeds
Specifications
- Motor - 1 HP Induction Motor
- Power - 120 Volt 60 Hz
- Flywheel Size - 10” Diameter
- Resaw Height - 5.75” (146 mm)
- Throat - 9-5/8” - 245 mm)
- Blade Length - 70-1/2” (1791 mm)
- Blade Width - Min. 1/8” - Max 1/2” (3.18 - 12.7 mm)
- Blade Speed - 1515 High / 3280 Low Ft/Min - (462 / 1000 m/min)
- Table Size - 13-3/4” x 12-1/2” (350 x 318 mm) (+ 1.25” left extension)
- Table Tilt - Left -5° / Right 45°
- Table Height - 14-1/2” (368 mm) (without optional stand)
- Dust Port Diameter - 2-1/2” x 2 (64mm)
- Base Size - 9-1/4” x 15-3/4” (235 x 400 mm)
- Overall Size - 22-1/2” x 21” x 34-1/2” (546 x 533 x 876 mm) LxWxH
- Included: 3/8” Blade
| Trades | Woodworking |
|---|---|
| Brand | Laguna |
| Voltage | 110 V |
| Sizes | 10" |
| Tool Type | Wood |
| Power | Single Phase |
