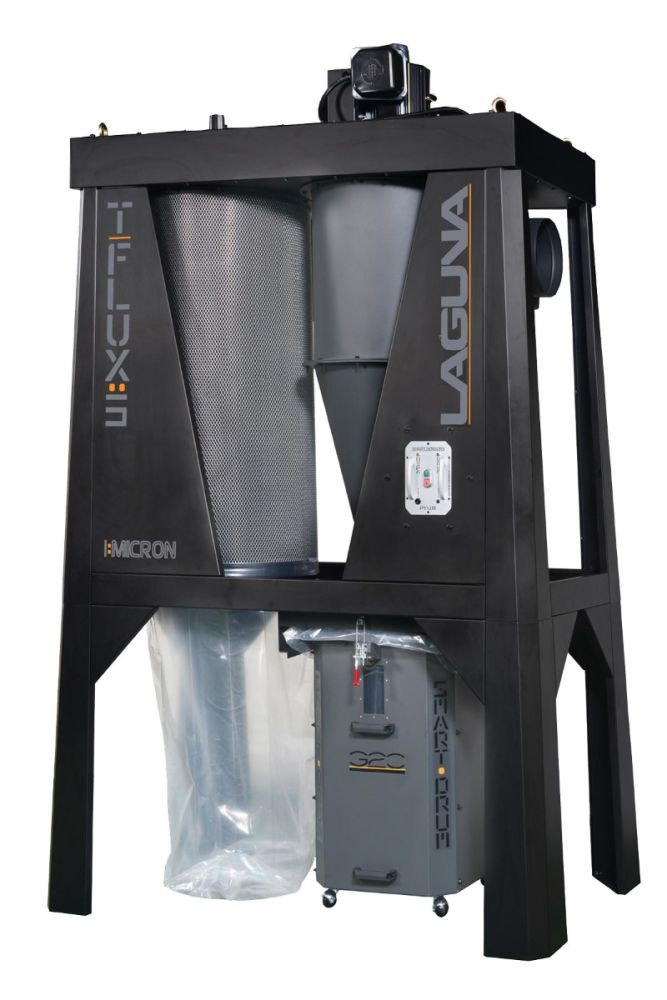

The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop. The T|Flux cyclones are equipped with a 10″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.
Features
- Motor: 5 HP
- 220V, 22.4 Amps, 1 Phase
- Recommended Breaker: 40 AMP
- 60 Hertz
- 3450 RPM
- Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
- Hand Held Remote Control: High Frequency
- Smart Drums alert when drums reach capacity
- Automatic canister cleaning every hour (10 sec clockwise & 10 sec counter-clockwise)
- Filtration: 1 micron canister, 99.97% efficiency for particles 0.2–2 microns
- Quick disconnect design & high-quality casters
Specifications
- Shop Setting CFM*: 2450
- Inlet CFM: 4295
- Max Static Pressure: 12.1″ H₂O
- Impeller/Fan Size: 16″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balanced To: ISO 1940
- Inlet Diameter: 10″
- Drum Capacity: 54 Gal
- Octagon Drum: Low Pressure Suction
- Drum Collection Bag (Dia. x L): 740 x 1300 mm
- Canister Filter Type: Black 1 Micron
- Filtration Efficiency: 1.2–2 Micron @ 99.97%
- MERV Rating: 12
- Canister Diameter: 600 mm (23.62″)
- Canister Length: 1200 mm (47.24″)
- Filter Surface Area: 15 m² / 162 ft²
- Lower Dust Collection Bag: 610 x 600 mm
- Wheels: None
- US/CSA Approved: Yes
- Decibel Reading: 76 dB(A) (@9.8 ft)
- Machine Weight: 325 kg / 717 lbs
- Shipping Weight: 430 kg / 948 lbs
- Shipping Dimensions (L x W x H): 75″ x 39″ x 80″
- Assembled Dimensions (L x W x H): 73″ x 39″ x 111″ (1845 x 989 x 2810 mm)
| Brand | Laguna |
|---|---|
| Tool Type | Wood |
