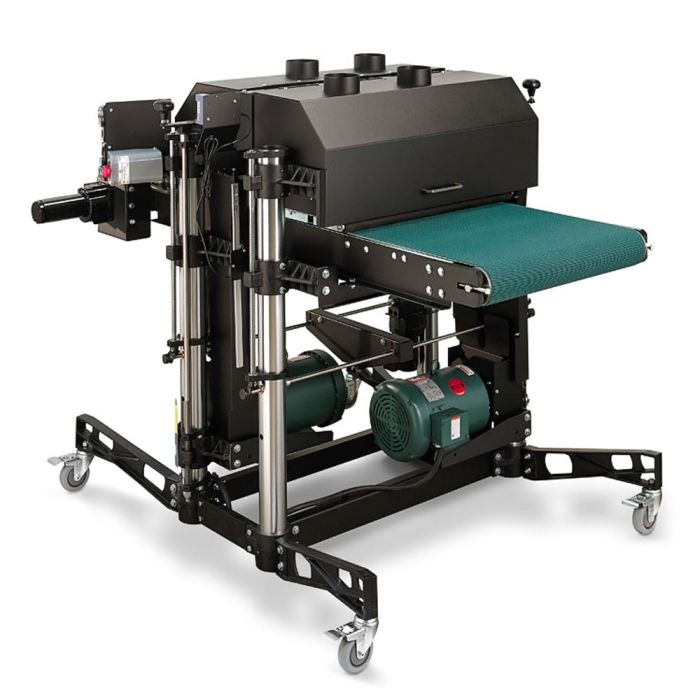

Laguna SUPERBRUSH 49x2, 3 Ph SUPMX-93497-2

Applications / Features

• Raw Wood Sanding
• White Wood Sanding
• Break sharp edges
• Blend out minor defects
• Sealer Sanding
• Primer Sanding
• Scuff Sanding
• Profile sanding
• Clean reclaimed wood
• Wire brushing to pull out soft grain to create a textured surface
• Brush rotation is reversible (second brush)
• RPM gauge displays brush speed, variable 400–1200 RPM
• Power and manual height adjustment, high speed and adjustable speed, controls 3/32 per turn
• Digital Readout: displays material removed per pass, zero at desired thickness, and actual thickness of stock as it exits the sander

These easy-to-use machines have an extremely low learning curve and include quick-change brush heads, infinitely variable brush and conveyor speeds, adjustable tension rollers, and precision height adjustments. Sizes range from 24″ to 49″ with single and/or double brush head offerings to meet all finishing needs.

Sanding Capacity

• Maximum Width - 49″
• Minimum Length - 11″
• Maximum Thickness - 9″ (varies with brush style)
• Minimum Thickness - 1/32″ (varies by application)
• Dimensions (H × W × D) - 50″ × 71″ × 31″ (49″ Model)

Brush

• Diameter - 9″ – 12″ typical
• Typical Bristle Length - 1-½″ – 3″

Speed

• Ranged variable, 400–1200 RPM brush

Dust Hood (49″ Model)

• Six (6) 4″ vacuum ports
• 2400 CFM minimum

Drive Motor (TEFC)

• 49″ Model: (2) 10 HP

Power Requirements

• 208–230V, 60Hz, 3 PH, 30 Amp Service

Shipping Weight

• 49″ Model: 1550 lbs

Conveyor Motor

• 220 in.-lb. torque, direct drive D.C. motor, ranged variable 0–30 FPM
