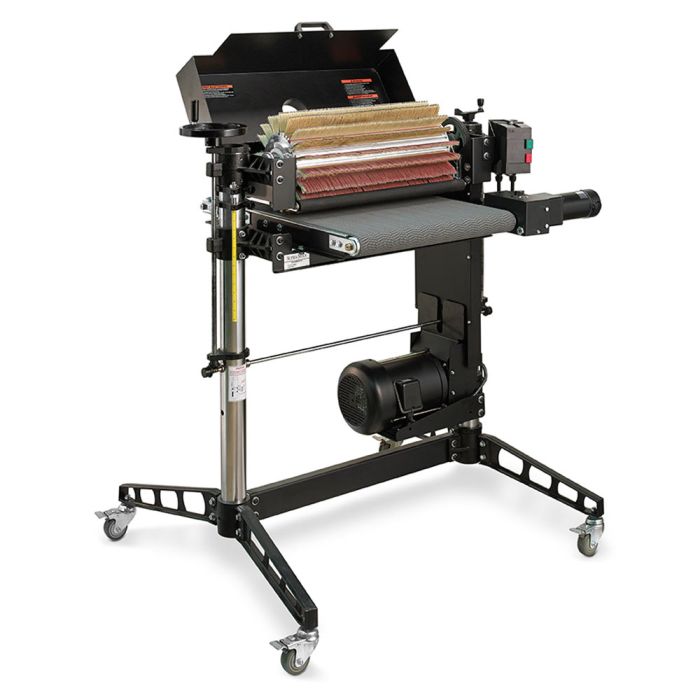

Laguna SUPERBRUSH 24, 1 Ph SUPMX-91267

Applications / Features

• Raw Wood Sanding
• White Wood Sanding
• Break sharp edges
• Blend out minor defects
• Sealer Sanding
• Primer Sanding
• Scuff Sanding
• Profile sanding
• Clean reclaimed wood
• Wire brushing to pull out soft grain and create a textured surface

Specifications

• Infinitely variable brush speed and conveyor feed rate for a wide variety of finishes
• Quickly change brush heads or abrasive loadings
• Fully adjustable tension rollers prevent stock slippage
• Reinforced steel conveyor bed with a poly conveyor belt
• Precision height adjustment
• Bristle Contact Gauge included

These easy-to-use machines feature a low learning curve and multiple advanced features, including quick-change brush heads, infinitely variable brush and conveyor speeds for endless finishing options, adjustable tension rollers to prevent stock slippage, and precision height adjustments. Sizes range from 24″ to 49″ with single and/or double brush head offerings to meet all finishing needs.

SuperBrush Single Brush Sanders Benefits

• Faster Output
• Reduced Rework
• Greater Surface Consistency

Sanding Capacity

• Maximum Width - 24″
• Minimum Length - 10″
• Maximum Thickness - 11″ (varies with brush style)
• Minimum Thickness - 1/32″
• Dimensions (H × W × D) - 52″ × 46″ × 35″ (24″ Model)

Brush

• Diameter - 9″ – 11″ typical
• Typical Bristle Length - 1-½″ – 3″

Speed

• Ranged variable, 400–1200 RPM brush

Dust Hood (24″ Model)

• Steel with hinged back
• Two (2) 4″ Vacuum Ports
• 1200 CFM Minimum

Drive Motor (TEFC)

• 24″ & 36″ Models - 5 HP

Power Requirements

• 208–230V, 60Hz; 1 PH, 30 Amp Service; 3 PH, 20 Amp Service

Shipping Weight

• 24″ Model - 525 lbs

Conveyor Motor

• Direct Drive D.C. Motor, infinitely variable, 0–15 FPM
• 24″ Model - 100 in.-lb. torque
