In Stock
SKU
MLAREVO 2436-220
$4,849.00

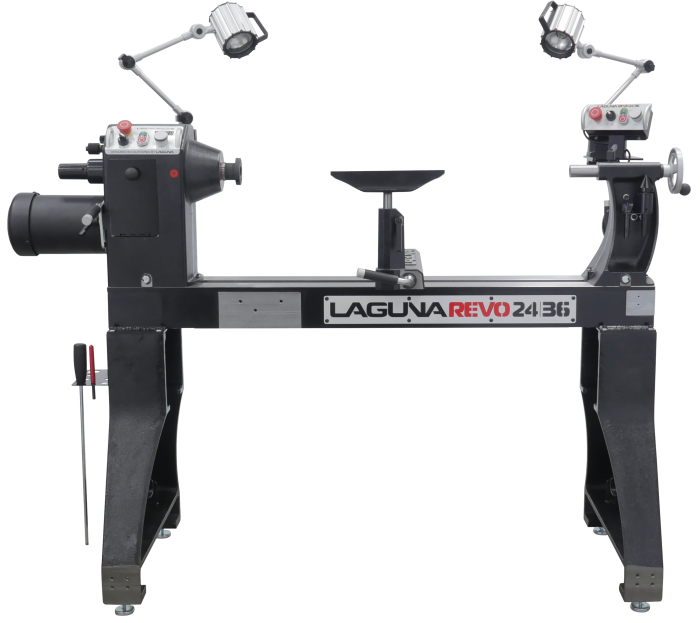

The Laguna Revo 24|36 is engineered for maximum strength, precision, and versatility. The lathe features legs with 80% heavier wall thickness than the Revo 18|36, providing unmatched stability. The redesigned banjo boasts a compact profile, 45° cutout, and a wider base for enhanced support. A unique dual control panel system allows operation from either the headstock or a secondary high/low-mounted control panel, giving the operator full control over speed and power, with an E-Stop that works from both panels. This innovative setup comes standard with the Revo 24|36.
Features
- Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
- Phase: 1-Phase Input, 3-Phase Output
- VFD: Delta S1 Variable Frequency Drive
- Two ergonomic control panel positions (high/low)
- Remote control box with speed settings
- Poly-Groove drive belt with EZ access
- Spring-loaded spindle lock
- Tailstock quill: 4-½″, engraved, self-ejecting
- Accepts vacuum chuck
Specifications
- Recommended Breaker Size: 15 Amp
- Floor to Spindle Center: 44-½″
- Front Bearing: TPI Taiwan 6307LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Indexing: 14/36/48 with lock
- Distance Between Centers: 36″
- Headstock Through-Bore: ⅜″
- Tailstock Storage of Centers
- Toolrest Post Size: 1″
- Spindle Size: 1-¼″ x 8 TPI RH
- Maximum Outboard Turning Diameter: 38″ (with optional 20″ extension)
- Swing Over Banjo: 19-¾″
- Faceplate: 3″ diameter
- Tool Rest Length: 12″
- Steel Bed: ASTM A36
- Bed Gap: 50mm
- Headstock Spindle: MT2 taper hardened to 40° HRC
- Tailstock Quill: MT2 taper hardened to 40° HRC
- Swing Over Bed: 24″
- RPM High: 135–3500
- RPM Low: 50–1300
- Floor Space (W x D x H): 60″ x 26″ x 52-¼″
- Shipping Weight: 610 lbs
- Shipping Dimensions (L x W x H): 36″ x 40″ x 50″
| Power Phase | 1 |
|---|---|
| Trades | Woodworking |
| Brand | Laguna |
| Voltage | 220 V |
| Tool Type | Wood |
