Laguna REVO 18|36 220V MLAREVO1836-220

Details

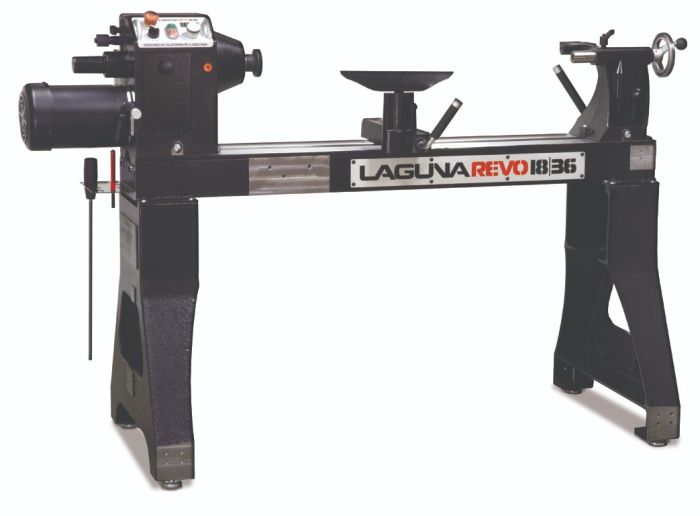

The Laguna Revo 18|36 Midi-Lathe is engineered for precision, power, and ergonomic efficiency. The first thing you'll notice is the angled anodized aluminum control panel, featuring a blue DRO and a knurled rubber-grip knob for precise RPM adjustments. The steel bed allows the cast iron headstock to glide smoothly, providing stability and longevity. Electronic variable speed is achieved through a VFD that converts 1-phase input to 3-phase output, delivering full torque even at low speeds. Quick-release handles and rear-positioned headstock & tailstock locks ensure uninterrupted workflow, with ergonomically designed cam-lock handles offering a firm feel with no deflection.

Features

Electrical: 2HP, 220 Volt, 60 Hz
Motor: Induction, 1725 RPM, TEFC
VFD: Delta S1 Variable Frequency Drive
Ergonomic angled anodized aluminum control panel with DRO
Poly-Groove Drive Belt with EZ access
Spring-loaded spindle lock
Electronic variable speed with accurate DRO readout
Optional outboard swing with extension kit
Headstock & tailstock cam-lock handles
Vacuum chuck compatible

Specifications

Phase: 1 Phase Input, 3 Phase Output
Recommended Breaker: 15 Amp
Maximum Outboard Swing: 32″ (with optional 20″ extension kit)
Swing Over Banjo: 13-½″
Bed Gap: 50 mm
Steel Bed: ASTM A36
Spindle Taper: MT#2
Toolrest Post Size: 1″
Swing Over Bed: 18″
RPM High: 135–3500
RPM Low: 50–1300
Tailstock Quill: 4-½″, engraved, self-ejecting
Floor to Spindle Center: 41-½″
Front Bearing: TPI Taiwan 6207LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Indexing: 14/36/48 positions with lock
Distance Between Centers: 36″
Headstock/Tailstock Through-Bore: ⅜″
Headstock Travel: Full Length
Tailstock Storage of Centers
Spindle Size: 1-¼″ x 8 TPI Right Hand Thread
Floor to Bed: 32-½″ with pads
Floor Space (W x D x H): 60″ x 26″ x 47″
Shipping Weight: 570 lbs
Shipping Dimensions (L x W x H): 61″ x 27″ x 28″

More Information

More Information
Power Phase	1
Trades	Woodworking
Brand	Laguna
Voltage	220 V
Tool Type	Wood
