In Stock
SKU
MLAREVO 1836-110-150
$3,599.00

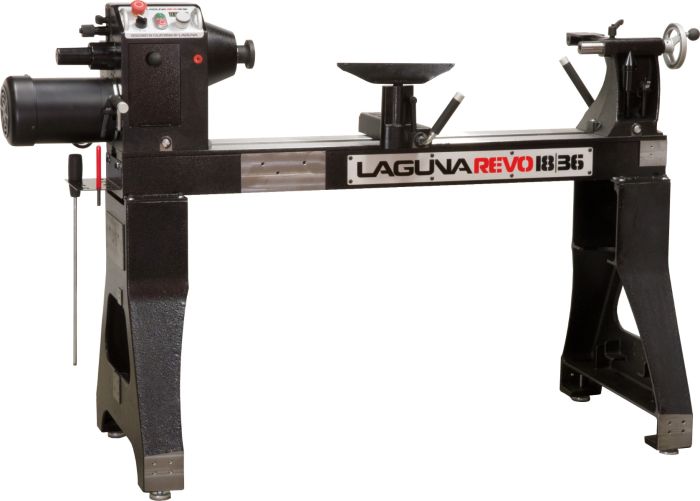

The Laguna Revo 18|36 Midi-Lathe combines precision, power, and ergonomic design for serious woodturners. The first feature you’ll notice is the angled anodized aluminum control panel, featuring a blue DRO and a knurled rubber-grip control knob for fine adjustments. The steel bed ensures smooth travel for the cast iron headstock, while the VFD converts 1-phase input to 3-phase output, delivering full torque even at low speeds. Quick-release handles and ergonomically placed headstock and tailstock locks maintain workflow efficiency, with cam-lock handles that provide a firm feel without deflection.
Features
- Electrical: 1.5 HP, 110 Volt, 60 Hz
- Motor: Induction, 1725 RPM, TEFC
- VFD: Delta S1 Variable Frequency Drive
- Ergonomic angled anodized aluminum control panel
- Poly-Groove Drive Belt with EZ Access
- Spring-loaded spindle lock
- Electronic variable speed with DRO readout
- Optional outboard extension for maximum 32″ swing
- Headstock & tailstock cam-lock handles
- Vacuum chuck compatible
Specifications
- Phase: 1 Phase Input, 3 Phase Output
- Recommended Breaker: 15 Amp
- Maximum Outboard Swing: 32″ (with optional 20″ extension kit)
- Swing Over Banjo: 13-½″
- Steel Bed: ASTM A36
- Toolrest Post Size: 1″
- Bed Gap: 50 mm
- Spindle Taper: MT#2
- Swing Over Bed: 18″
- RPM High: 135–3500
- RPM Low: 50–1300
- Tailstock Quill: 4-½″, engraved, self-ejecting
- Floor to Spindle Center: 41-½″ with pads
- Front Bearing: TPI Taiwan 6207LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Indexing: 14/36/48 positions with lock
- Distance Between Centers: 36″
- Headstock/Tailstock Through-Bore: ⅜″
- Headstock Travel: Full Length
- Tailstock Storage of Centers
- Spindle Size: 1-¼″ x 8 TPI RH
- Floor to Bed: 32-½″ with pads
- Floor Space (W x L x H): 60″ x 26″ x 47″
- Shipping Weight: 570 lbs
- Shipping Dimensions (L x W x H): 61″ x 27″ x 28″
| Power Phase | 1 |
|---|---|
| Trades | Woodworking |
| Brand | Laguna |
| Voltage | 110 V |
| Sizes | 32" |
| Tool Type | Wood |
| Power | Single Phase |
