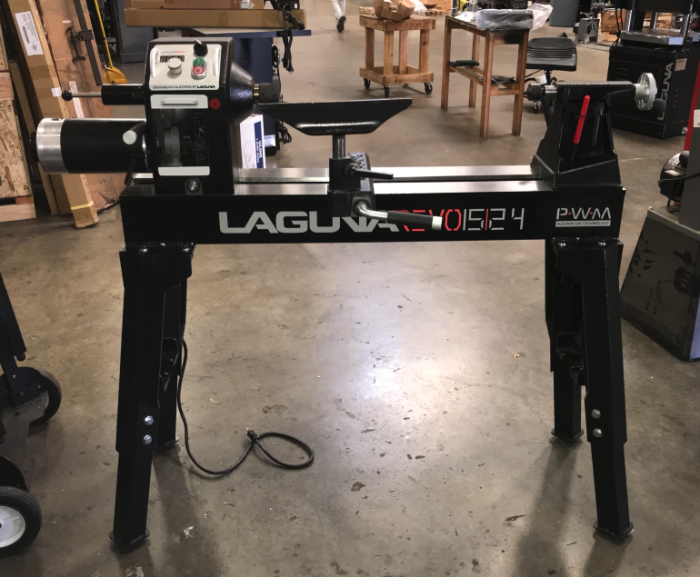

Laguna REVO 15|24 415241

Details

The Laguna REVO 15|24 Midi-Lathe bridges the gap between the Revo 12|16 and the Revo 18|36, offering enhanced capacity and power while remaining space-conscious. Featuring Laguna’s world-class fit and finish, this lathe includes a sliding headstock for ergonomic outboard bowl turning, infinite electronic variable speed control, and the precision of Pulse Width Modulation (PWM) for consistent torque at all speeds. The patent-pending Precise Point allows exact alignment of the tailstock quill with the headstock center, while adjustable-height legs ensure a comfortable working position.

Features

Sliding headstock for ergonomic outboard bowl turning
Infinite electronic variable speed: 50–4200 RPM with 3-step pulley
PWM DC motor delivers full torque at low speeds
Adjustable-height legs for ergonomic working position
Steel bed for stability and smooth banjo travel
Precise Point for dial-in alignment of tailstock quill
World-class fit and finish

Specifications

Electrical: 1.5 HP, 110V, 8 Amp, 60Hz
Motor: Permanent Magnet DC, 2150 RPM
PWM: Pulse Width Modulation Speed Control
Recommended Breaker: 15 Amp
Spring-Loaded Spindle Lock
Swing Over Bed: 15-½″
Swing Over Banjo: 11-3/32″
Max Outboard Swing (optional accessory): 25″
Tool-Rest Post Size: 1″
Tool-Rest Length: 12″
Bed Gap: 50 mm
Spindle Taper: MT#2
RPM High: 650–4200
RPM Mid: 325–2100
RPM Low: 50–650
Vacuum Chuck Compatible: No
Tailstock Quill: 4-½″, self-ejecting
Floor to Spindle Center Low: 36-13/32″
Floor to Spindle Center High: 51-13/32″
Floor to Bed Min: 25-19/32″
Floor to Bed Max: 43-19/32″
Front Bearing: TPI Taiwan 6206LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Indexing: 24 positions with lock
Distance Between Centers: 24″
Headstock/Tailstock Through-Bore: ⅜″
Headstock Travel: Full Length
Tailstock Storage of Centers
Spindle Size: 1-¼″ x 8 TPI RH
Floor Space (W x D x H): 60″ x 22″ x 22″
Certification: CSA C/US 256540
Box Dimensions (L x W x H): 52″ x 22″ x 22″
Weight (Net/Ship): 288 / 302 lbs

More Information

More Information
Power Phase	1
Brand	Laguna
Voltage	110 V
Tool Type	Wood
