SKU
MLAREVO1216EVS
$1,099.00

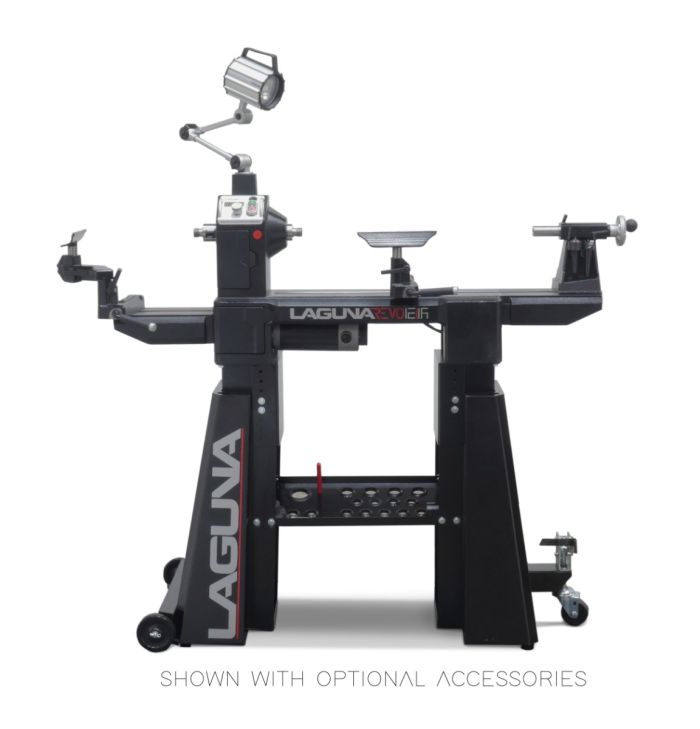

The Laguna REVO 12|16 Midi-Lathe brings professional performance to a compact size. Built with a 1 HP DC Permanent Magnet Motor controlled by Pulse Width Modulation (PWM), this lathe delivers full torque at all speeds, ensuring smooth and precise turning even at low RPMs. Designed for versatility, it can handle outboard turning up to 16” and features a luxury banjo with a 45º chamfered edge for secure tool rest positioning.
Features
- 1 HP DC Permanent Magnet Motor
- PWM Controller for consistent torque across all speeds
- One-step cam-action belt change with magnetic door housing
- Luxury banjo with 45º chamfered edge
Specifications
- Electrical Requirements: 110V, 1 Phase, 60 Hz
- Recommended Breaker Size: 15 Amp
- Speed Range High: 650–3500 RPM
- Speed Range Mid: 325–1750 RPM
- Speed Range Low: 50–525 RPM
- Distance Between Centers: 15-½″
- Swing Over Bed: 12-½″
- Swing Over Banjo: 9-½″
- Max Outboard Swing: 16″
- Spindle Bore: ⅜″
- Spindle Taper: 1″ x 8 TPI (both ends)
- Front Bearing: 60006LLU
- Rear Bearing: 6005LLU
- Indexing: 24 positions with lock
- Vacuum Chuck Compatible: No
- Drive Belt: Poly-V, 6 grooves
- Tailstock Quill Travel: 2-½″
- Tailstock Taper: MT2
- Bed Length: 29.4″
- Bed Gap: 1-¼″
- Tool Rest Length: 8″
- Tool Rest Post Diameter: 1″
- Faceplate Diameter: 3″
- Certification: CSA C/US 256540
- Floor to Bed Height: 6-¾″ (No Pads)
- Floor to Spindle Center: 13″ (No Pads)
- Overall Size (L x W x H): 35.8″ x 14.6″ x 20.5″
- Net Weight: 118 lbs
- Shipping Weight: 125 lbs
- Shipping Dimensions: 37″ x 15″ x 21″
| Trades | Woodworking |
|---|---|
| Brand | Laguna |
| Voltage | 110 V |
| Tool Type | Wood |
| Power | Single Phase |
