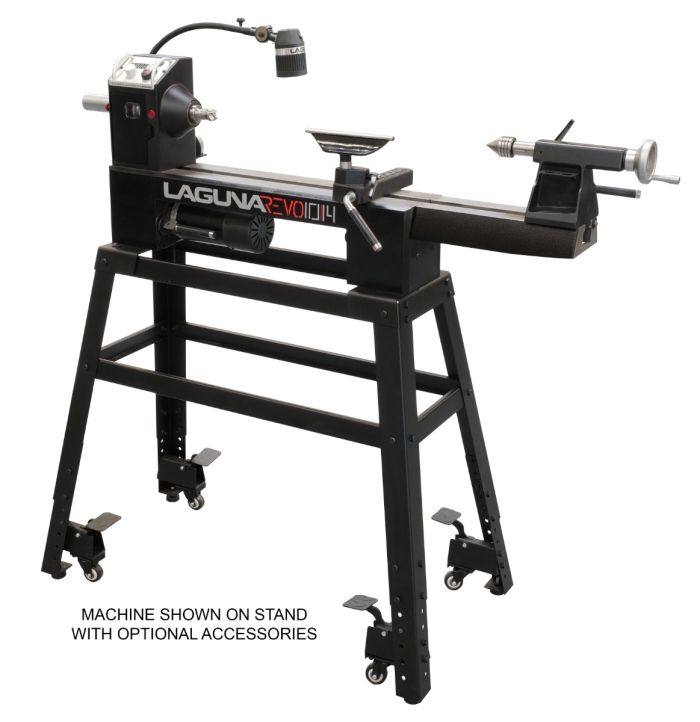

Laguna REVO 10|14 MLAREVO10A

Best-In-Class Features

• Projected cast iron nose cone on headstock for wider bearing spacing and additional tool clearance
• 1 HP PWM Induction Motor for smooth, variable speed control
• Ergonomic control panel with digital readout
• Auxiliary 120V outlet and predrilled mounts for optional LED worklight
• Luxury live center and spur drive with onboard storage

Additional Features

• 3-pulley drive with poly-groove belt and belt position window
• Forward and reverse operation
• Electronic speed control with knob
• Tool rest with hardened steel leading edge
• Etched tailstock quill in inches and mm
• Quick belt tension release with dual-door belt change
• Heat-treated spindle
• On-board accessory tool storage

Specifications

• Motor: 1 HP PWM Induction Motor
• Power: 120V, 60 Hz
• Turning Capacity: 10” Diameter x 14” Length (254 x 355 mm)
• Spindle Threads: 1” x 8 TPI
• Spindle Taper: #2 MT (headstock and tailstock)
• Tailstock Quill Travel: 3.5” (92 mm)
• Indexing: 24-position in-head indexing
• Spindle Lock: Push button
• Power Outlet: Built-in 120V for optional LED light
• Tool Rest: 6” long, 1” diameter post, 6 mm hardened steel leading edge
• Headstock & Tailstock Bore: ⅜” (10 mm) through bore
• Dust Port Diameter: 2 x 2-½” (64 mm)
• Speed Range: High 950–3200 RPM, Mid 430–1450 RPM, Low 250–850 RPM
• Overall Size: 30.75” x 13.4” x 15.6” (L x W x H)
• Weight: 95 lb (43 kg)

Optional Equipment

• Adjustable Height Stand - 110001
• Caster Set - 110002
• 10” Extension - 410002
• LED Work Light with optional fixed or magnetic mounts - ALEDSPINE
