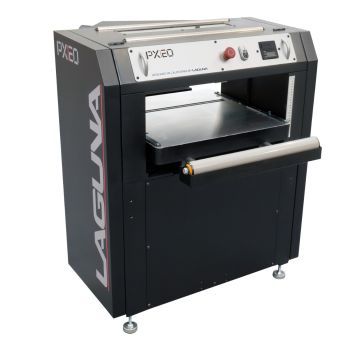

Laguna PX|22 ShearTec: II 10 HP 3 PH MPLANPX2210-0130

Features

• Motor – Available in 7.5 HP Single Phase or 10 HP Three Phase configurations.
• Segmented Infeed Roller – Allows multiple boards to feed smoothly without stalling due to slight thickness variations.
• Electronic Variable Speed – Adjust feed speed for quick thicknessing or slower cuts for more passes per inch.
• Infeed and Outfeed Rollers – Assist with material feeding while maintaining a compact footprint.
• Digital Readout (DRO) – Facilitates precise thickness adjustments.
• Ergonomic Control Panel – Angled control panel at the top of the machine provides easy access and visibility for the operator.
• Improved Dust Collection – 5″ dust chute can be directed left or right for optimal dust management.
• 4-Post Bed Support – Ensures consistent and precise performance on every cut.
• ShearTec II Cutterhead – 6-row carbide insert cutterhead provides superior surface finish on all wood types, including challenging hardwoods.

Specifications

• Motor: 220V, 10HP, 3 Phase, 60Hz, 28 Amp
• CSA Approved: Yes
• Bed Size: 22″ x 28″
• Pull-Out Extension: 6″
• Max Depth of Cut: ¼″
• Max Stock Thickness: 8″
• Min Stock Thickness: ¼″
• Min Stock Length: 9″
• Max Stock Width: 22″
• Feed Speed: 10 – 30 FPM, Variable Speed
• Dust Port Diameter: 5″ Left or Right
• Cutterhead RPM: 5000
• Cutterhead Diameter: 3-½″
• Cutterhead Insert #: 150 x 4-Sided Carbide, 6 Row
• No Cord or Plug Supplied
• Thickness Readout: Wixey DRO
• Noise (1m away): 83 dB
• Dimensions Set Up (Approx.): 40″ x 46″
• Dimensions Shipping: 44″ x 38″ x 48-½″
• Net/Ship Weight: 867/955 lbs
