In Stock
SKU
MPSP14-10-7.5HP-3-220-0148
$18,511.97

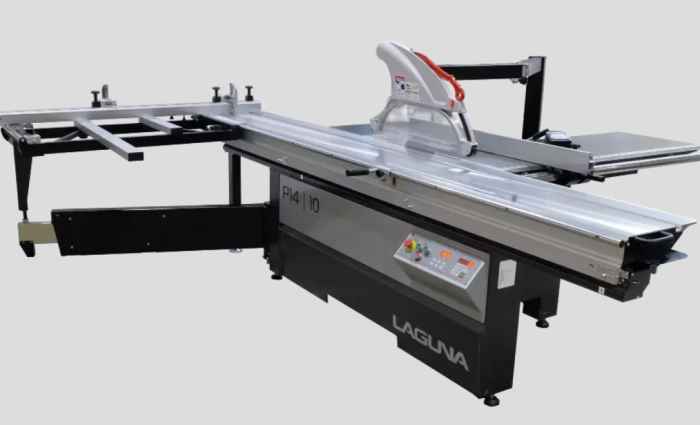

The sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro-adjustment for fine-tuning; simply lock it in place and adjust the fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way.
Features
- Max Main Saw Blade: 14″
- Sliding Table Capacity: 10′ 6″
- Motor Power: 7.5HP 220V / 60Hz / 3 Phase
Specifications
- Sliding Table Capacity: 10′ 6″
- Max Main Saw Blade: 14″
- Max Cutting Height w/ Blade at 90°: 4-3/4″
- Max Cutting Height w/ Blade at 45°: 2-3/4″
- Main Motor Power: 7.5HP 220V / 60Hz / 3 Phase
- Main Saw Speed: 3000 / 4000 / 5000 RPM
- Scoring Saw Blade: Ø120mm
- Scoring Saw Blade Bore: Ø20mm
- Scoring Blade Speed: 8000 RPM
- Scoring Motor Power: 1HP
- Max Rip Capacity: 51″
- Manual Control for Cutting Width Adjustment w/ DRO
- Digital Control for Saw Blade Tilting Adjustment
- Motorized Control for Main Saw Blade Height Adjustment
- Motorized Control for Scoring Saw Height Adjustment
- Motorized Control for Scoring Saw +/- Direction Adjustment
- Digital Display for Blade Tilting Angle
- Digital Display for Main Blade Speed RPM
| Power Phase | 3 |
|---|---|
| Brand | Laguna |
| Voltage | 220 V |
| Sizes | 12" |
| Tool Type | Wood |
