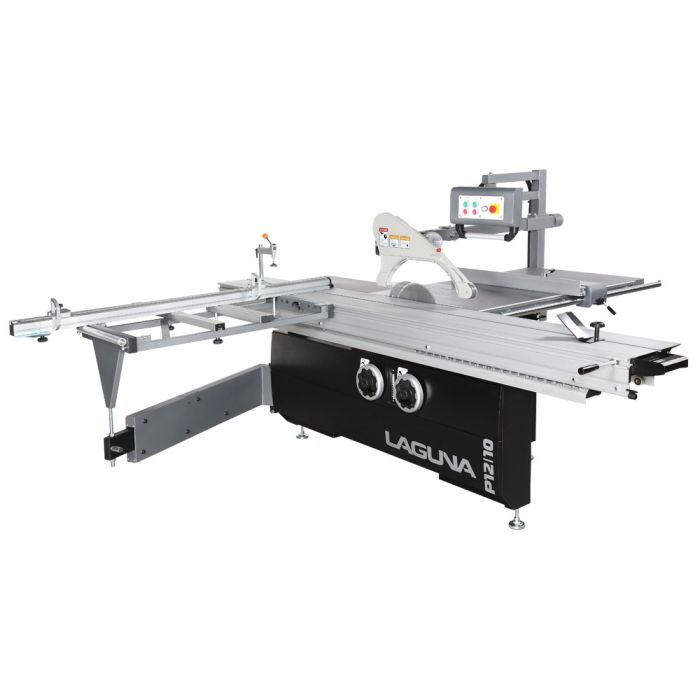

Laguna P12|10 Panelsaw 220V 1Phase MPSP12-10-5HP-1PH-0135

Details

The 126″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51″ rip fence consists of heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust the fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is a swing-away function that allows you to quickly move the guard out of the way. The dust collection hookup is out of the way at the end of the gantry (5″).

Features

Motor: 7.5HP 3 Phase or 5HP 1 Phase
Voltage: 220V, 60 Hz
Blade Capacity: 12″, 14″ (300mm, 355mm)
Max Blade: 16″ (400mm) (minimum height when lowered: 1″ / 25mm)
Max Scoring Blade: 4-3/4″ (120mm)
Scoring Adjustment: T-Handle through Cast Top

Specifications

Arbor: 30mm (Main), 20mm (Scoring)
Max Cutting Height 90° 14″/355mm Blade: 4-½″ (115mm)
Max Cutting Height 90° 16″/400mm Blade: 5-⅛″ (130mm)
Max Cutting Height 45° 14″/355mm Blade: 2-¾″ (70mm)
Max Cutting Height 45° 16″/400mm Blade: 3-½″ (90mm)
Main Blade Speed: 4000 RPM
Scoring Blade Speed: 8000 RPM
Dust Collection Port Saw: 4¾″ (120mm)
Dust Collection Port Guard: 4″ (100mm)
Sliding Table: 126″ (3200mm)
Sliding Table Width: 14.88″ (378mm)
Main Cast Table: 21-½″ x 35-¼″
Rip Fence: 51″ (1300mm)
Rip Fence Micro Adjust: Included
Rip Fence Bar: 1-⅝″ (40mm) Solid Steel Micro Polished
Overhead Guard With Swing-Away
Push Handle: Included
Rip Shoe: Included
Hold Down Clamp: Included
Crosscut Fence: 2 x Flip-Stops
Crosscut Fence Readout: Inch/Metric
Crosscut Fence Max Collapsed: 77″
Crosscut Fence Max Extended: 140″
Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
Ship Dimensions Body: 83″ x 47″ x 46″
Ship Dimensions Table: 137″ x 20″ x 15″
Weight (Net/Ship): 1815/2112 lbs

More Information

More Information
Power Phase	1
Brand	Laguna
Voltage	220 V
Sizes	12"
Tool Type	Wood
