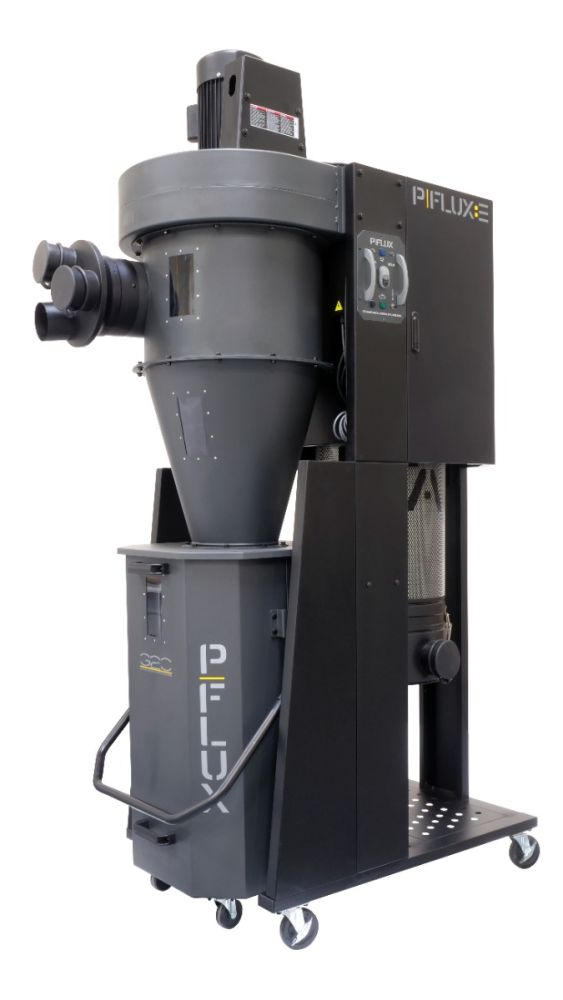

The P|Flux series gets major upgrades including an auto-cleaning feature standard on all models. The auto-clean activates every 10 minutes or via the redesigned remote. Overfilling is prevented by the 46-gallon octagonal drum (P|Flux 2 and 3), and LED lighting along with audio warnings alert when the drum is full.
Features
- Motor: 3 HP
- Air Flow: 1624 CFM
- Collection Capacity: 46 Gallon Octagon Drum
Specifications
- Motor Specs: 3HP
- Electrical Specs: 220V, 60Hz, 1PH, 3450 RPM
- Running AMP: 22A at 220V (8″ Inlet)
- Air Volume: 1624 CFM
- Max Static Pressure: 11.2″
- Fan Size: 15.5″
- Inlet: 8″ (8″ x 4″ x 3 Ports)
- Remote Control: High Frequency
- Decibel Reading: 76 dB (@9.8ft)
- Assembled Dimensions (L x W x H): 48″ x 28″ x 88″
- Packing Size (L x W x H): 50″ x 31.5″ x 50.6″ (127 x 80 x 128.5 cm)
- Machine Weight: 372 lbs (169 kg)
- Shipping Weight: 441 lbs (200 kg)
Filter Specs
- Filtering Area: 102 sq/ft (9.5 sq/m)
- Cartridge Filter*: HEPA, 15.74″ x 35.43″ (40 x 90 cm) x 1pc
*The non-stick PTFE membrane may show minor wear after 200,000 cycles where the cleaning paddles contact the filter media, but this does not significantly affect filtration efficiency. HEPA filter media is independently tested by an accredited 3rd party (TTRI) and designed with wide-spaced pleating to maintain optimal performance throughout its lifespan.
| Power Phase | 1 |
|---|---|
| Trades | Woodworking |
| Brand | Laguna |
| Voltage | 220 V |
| Tool Type | Wood |
