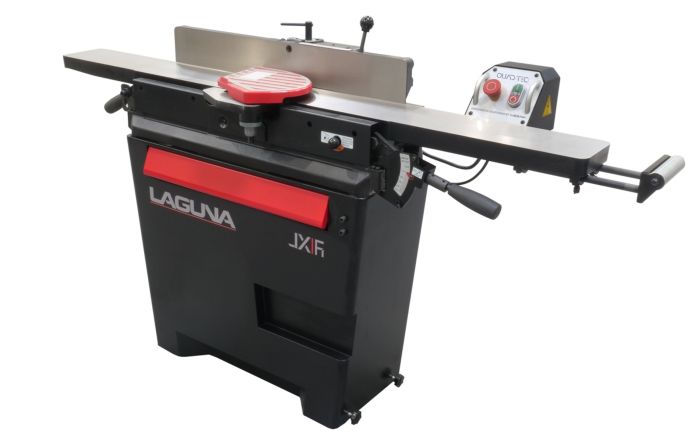

Laguna JX|6 QuadTec: I Jointer 506601

Features

• Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
• Emergency “Knee-Stop” – Body-length bar at knee height shuts off the jointer quickly while keeping hands on the workpiece
• New Ergonomic Machine Body – Redesigned with a “toe-kick” for safer and easier operator positioning
• In-feed Support Roller – Pull-out support roller helps support longer materials
• QuadTec I Cutterhead – 4-sided carbide insert knives provide a smoother finish, quieter operation, and longer life; knives are rotatable without a setting jig
• Built-In Wheels – No separate mobility kit needed
• Cast-Iron Tables and Fence

Specifications

• Motor: 110V, 1.5HP, 1 Phase, 60Hz, 13 Amp
• CSA Approved: Yes
• Bed Size: 60″ x 6″
• Infeed Table Pull-Out Extension: 8″
• Rabbetting Capacity: 1/2″
• Fence Size: 29″ x 3-¾″ Cast Iron
• Fence Tilt: ±45/90°
• Max Depth of Cut: 1/8″
• Table Height From Floor: 31″
• Safety Bar Shut-Off: Yes
• Bracket To Mount Light: No
• 110V Outlet For Light: No
• Bracket To Mount Feeder: No
• Dust Port Diameter: 4″
• Plug (NEMA 5-15P): Yes
• Cutterhead Insert #: 12 x 4-Sided Carbide, 4-Row
• Cutterhead RPM: 5500
• Cutterhead Diameter: 2-1/2″
• Bed Adjustment: Parallelogram
• Dimensions Set Up (Approx): 63″ x 22″
• Base Footprint Dimensions: 25-1/2″ x 11-4/5″
• Dimensions Shipping: 65″ x 22″ x 13″ + 31″ x 16″ x 27″
• Net/Ship Weight: 161/174 Lbs + 88/94 Lbs (2 Boxes)
