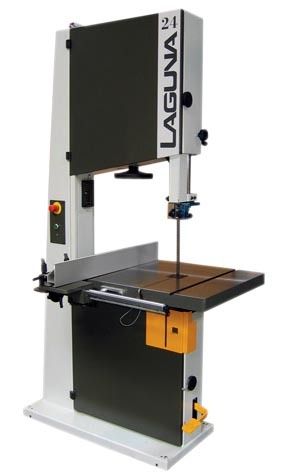

If you are working on jobs that require a large table and extra throat capacity, then the Laguna Tools LT24x17 HD Bandsaw is the perfect machine. Boasting a 17-5/8″ resaw capacity driven by an American-made 5 HP single-phase motor, it includes all the features Laguna Tools is known for. This bandsaw comes with geared trunnions, EZ Tension indicator, foot brake, high/low fence system, and our award-winning Laguna Guide System with Space Age technology. Built Laguna Tough with all the innovations for exceptional quality.
Features
- 5 HP 1 Phase Standard
- Optional: 5 HP 3 Phase or 7.5 HP 3 Phase (additional cost)
- 220 Volt
- 30-40 Amp Recommended Breaker
- Minimum-Maximum Blade Width: 1/8″ – 1-1/4″
- Resaw Capacity: 17-5/8″
Specifications
- Resaw Capacity: 17-5/8″
- Throat Capacity: 23-1/4″
- Blade Length: 183″
- Minimum Blade Width: 1/8″ (*with optional Cool Blocks) or 1/4″ standard
- Maximum Blade Width: 1-1/2″
- Blade Guides: Laguna Guides
- Upper Guide: Rack and Pinion
- Table Size: 24″ x 34-1/2″
- Table Height: 35″
- Fence: High/Low Aluminum Standard
- Overall Height: 84-1/2″
- Base Size: 15″ x 41-3/8″
- Dust Port: One 4″ Port
- Motor: 5 HP Standard or 7.5 HP 3 Phase (Additional Cost)
- Volt: 220V (can be ordered 1ph or 3ph)
- Recommended Breaker: 30/40 Amp
- Weight (Net/Ship): 725 lbs / 825 lbs
- Shipping Dimensions (L x W x H): 36″ x 40″ x 96″
- Optional cool blocks required for blades less than 1/4″
| Brand | Laguna |
|---|---|
| Sizes | 24x17" |
| Tool Type | Wood |
