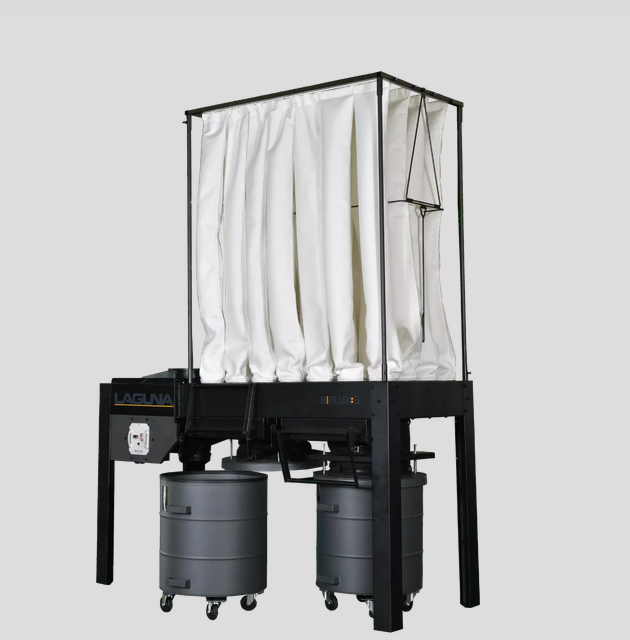

The I|Flux: 10 Elite addresses fine dust collection with 409 square feet of filter surface area – double that of a typical 10HP collector. Smaller diameter bags and a higher quantity maximize filter surface area for optimal airflow. The positive pressure chamber pushes air through the filters while dust falls into the EZ Lift waste bins. A shaking mechanism helps release caked dust. Tested on the assembly line, the I|Flux Elite series is ready for all fine dust applications.
Features
- Motor: 10 HP
- Motor RPM: 1720
- Air Flow: 5000 CFM @ 6″wc
- Inlet Diameter: 15″
- Filter Area: 409 ft²
- Filter Bags: 40 x D168mm x H1800mm
- Filter Bag Material: Polyester
- Filter Cleaning: Manual Shaker
- Waste Bins: EZ Lift Metal Bin 64 Gal x 3
Specifications
- Power Requirements: 220V / 60Hz / 3 Phase
- Amperage: 24.8 Amps
- Floor Space (W x L): 3424mm x 1140mm
- Machine Weight: 1069 lbs (485 kgs)
- Shipping Weight: 1113 lbs
- Shipping Dimensions (L x W x H): 75″ x 39″ x 80″
- Motor HP: 10
- Motor RPM: 1720
- Air Flow: 5000 CFM @ 6″wc
- Inlet Diameter: 15″
- Filter Area: 409 ft²
- Filter Bag (L x D x H): 40 x 168 x 1800mm
- Filter Bag Material: Polyester
- Filter Cleaning: Manual Shaker
- Waste Bin: EZ-Lift Metal Bin 64 Gal x 3
| Brand | Laguna |
|---|---|
| Tool Type | Wood |
