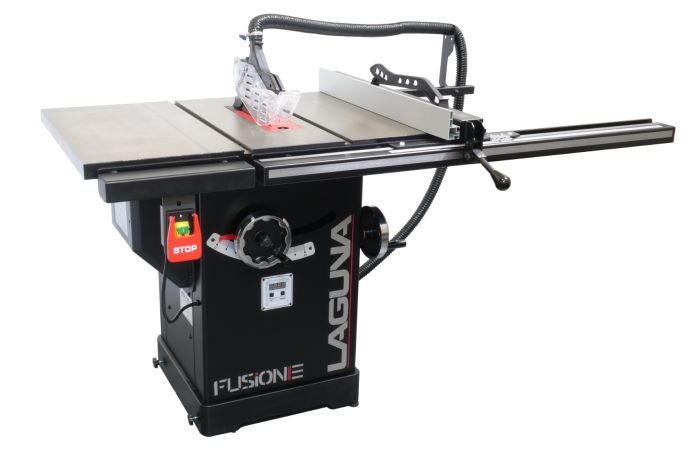

Laguna FUSION F3 MTSF3362203-0130

Features

• Motor: 3HP TEFC, 220V, Single-Phase, 60Hz
• Fusion Dust Collection System with Hi-Lo over/under collection & sealed cabinet bottom
• Industrial 14-Gauge Cabinet
• Cast Iron Table & Wings
• Industrial Fence & Rails
• European Hi-Lo Fence with Hi/Low window (F2 & F3)
• Cabinet-Mounted Trunnions
• Premium Arbor & Motor Bearings
• Premium Miter Gauge Included
• Quick-Release Blade Guard & Spreader
• Riving Knife Included
• Push Stick Included
• Integrated Tool Storage
• Included 10″ x 40T Carbide-Tipped Blade
• Digital Readout (DRO) for blade tilt
• Optional Outfeed Table with dual miter slots and support legs
• Magnetic Contractor Switch for safety
• Mobility Built Into Cabinet
• Premium Zero Clearance Throat Plate

Specifications

• Dust Port Size: 4″; Blade Guard Dust Port: 1-½″
• Table Saw Type: Cabinet
• Maximum Blade Diameter: 10″
• Arbor Size: ⅝″; Arbor Speed: 4500 RPM
• Maximum Width of Dado: ¾″
• Blade Tilt Direction: Left; Max Blade Tilt: 45°
• Maximum Depth of Cut at 90°: 3-⅛″; at 45°: 2-⅛″
• Maximum Rip Right of Blade with Included Fence & Rails: 37″*
• *Note: The hybrid fence on the Laguna Fusion offers the best of European and American fence features. It is NOT designed for use on the left side of the blade. The left rail/tube only allows adjustable ON/OFF switch positioning.
