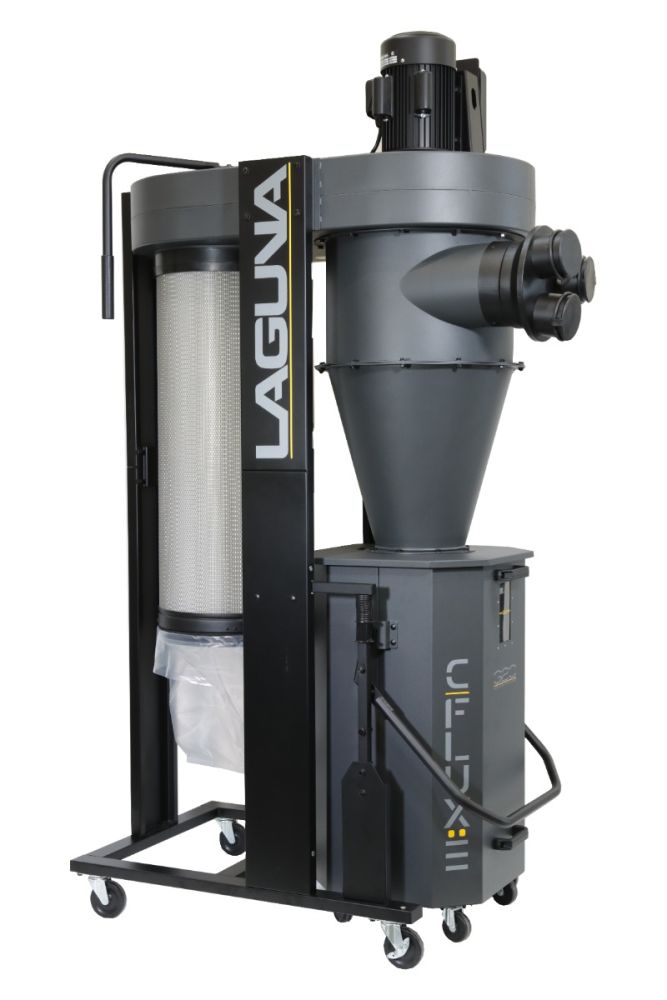

In 2022, Laguna updated its line-up of C|Flux & P|Flux cyclones, and launched the all-new X|Flux 5 dust collector!
The C|Flux cyclones maintain user-friendly aspects of previous generations while adding smart new features such as a dual-paddle filter cleaning design and max level indicator for longer filter life.
The iconic octagonal drum grows to a 46-gallon capacity on the C|Flux 2 and 3 models. The redesigned 3-piece drum reduces assembly time, while locking casters provide additional stability.
Features
- Motor: 3 HP
- Air Flow: 1624 CFM
- Collection Capacity: 46 Gallon Octagon Drum
Specifications
- Motor Specs: 3HP
- Electrical Specs: 220V, 60Hz, 1PH, 3450 RPM
- Running AMP: 22A at 220V (8″ Inlet)
- Air Volume: 1624 CFM
- Max Static Pressure: 11.2″
- Fan Size: 15.5″
- Inlet: 8″ (8″ x 4″ x 3 Ports)
- Remote Control: High Frequency
- Decibel Reading: 88 dB (@ 9.8ft)
- Assembled Dimensions (L x W x H): 48″ x 28″ x 88″
- Packing Size (L x W x H): 50″ x 31.5″ x 50.6″ (127 x 80 x 128.5 cm)
- Machine Weight: 373 lbs (169 kg)
- Shipping Weight: 441 lbs (200 kg)
Filter Specs
- Filtering Area: 102 sq/ft (9.5 sq/m)
- Cartridge Filter: 1 Micron, 15.74″ x 35.43″ (40 x 90 cm) x 1pc
| Power Phase | 1 |
|---|---|
| Trades | Woodworking |
| Brand | Laguna |
| Voltage | 220 V |
| Tool Type | Wood |
