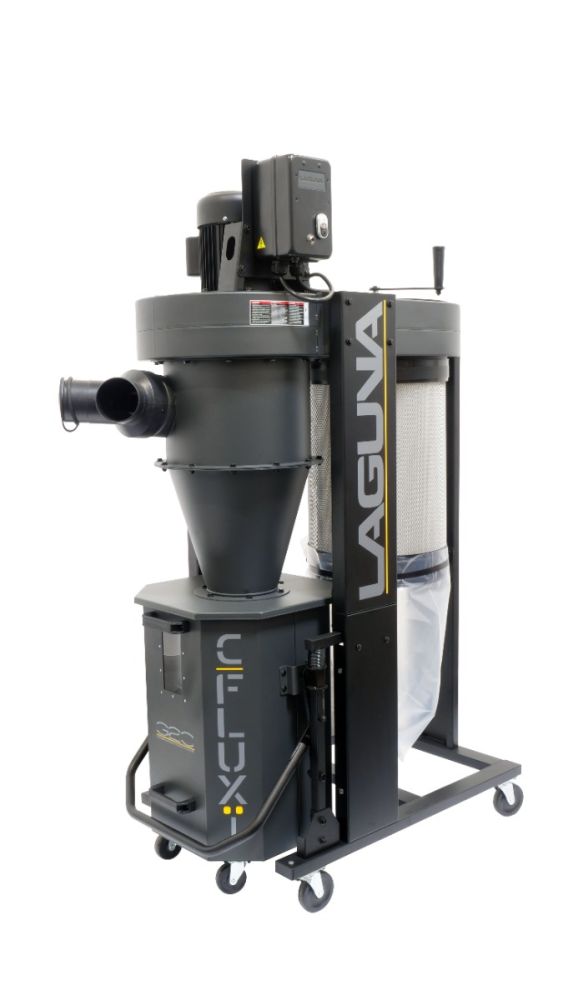

In 2022, Laguna updated its line-up of C|Flux & P|Flux cyclones, and launched the all-new X|Flux 5 dust collector!
The C|Flux cyclones maintain user-friendly aspects of previous generations while adding smart new features such as a dual-paddle filter cleaning design and max level indicator for longer filter life.
The iconic octagonal drum grows to a 46-gallon capacity on the C|Flux 2 and 3 models. The redesigned 3-piece drum reduces assembly time, and locking casters provide additional stability.
Features
- Motor: 1.5 HP
- Air Flow: 900 CFM
- Collection Capacity: 25 Gallon Octagon Drum
- Electrical Specs: 110V/220V, 60Hz, 1PH, 3450 RPM
- Running Amp: 18.8A at 110V; 9.4A at 220V (with 6″ inlet)
- Max Static Pressure: 10.1″
- Fan Size: 13.5″
- Inlet: One 6″ or Two 4″ Ports
- Remote Control: High Frequency
- Decibel Reading: 82 dB (@ 9.8ft)
- Assembled Dimensions (L x W x H): 42″ x 25″ x 68″
- Packing Size (L x W x H): 45″ x 28.3″ x 47″ (114.5 x 72 x 119.5 cm)
- Machine Weight: 232 lbs (105 kg)
- Shipping Weight: 287 lbs (130 kg)
Filter Specs
- Filtering Area: 48.4 sq/ft (4.5 sq/m)
- Cartridge Filter: 1 Micron, 15.74″ x 19.68″ (40 x 50 cm) x 1pc
| Power Phase | 1 |
|---|---|
| Trades | Woodworking |
| Brand | Laguna |
| Voltage | 110 V |
| Tool Type | Wood |
| Power | Single Phase |
