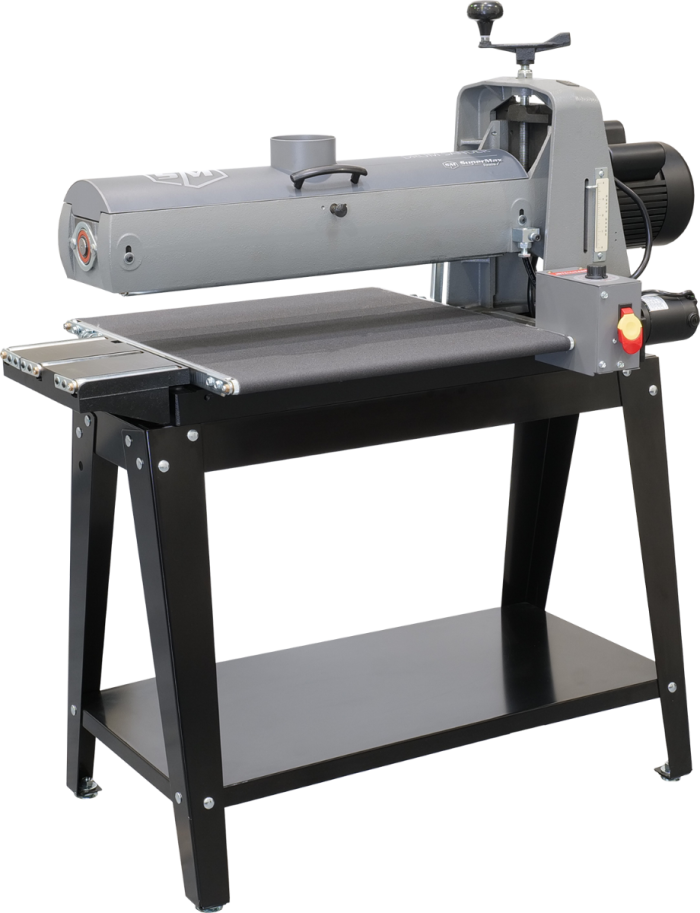

Laguna 25-50 DRUM SANDER OPEN STAND SUPMX-72550-OP

Features

• 25″ Sanding in a Single Pass, 50″ in a Double Pass
• More Room for Easy Access to Abrasives – No Special Tool Needed
• New Mobile Base Helps Stand and Machine Move with Ease
• Simple Alignment Feature – One nut adjusts the conveyor parallel to the sanding head for fast alignment
• Indexed Alignment Setting – Ensures flawless sanding for stock wider than 25″
• Drum Will Never Go “Out of Alignment” – Drum carriage bolted to base prevents movement or alignment issues

Additional Features

• INTELLISAND™ Technology – Automatically adjusts conveyor speed based on load
• Prevents gouging, damaging, or burning stock
• Provides consistent finish even with varying grain pattern and density
• Greatly increases abrasive planing and dimensioning speed
• Flatness Guarantee – Precision-flattened steel conveyor bed reinforced with four steel cross sections, flatness to less than .010″
• Abrasive conveyor belt offers excellent grip for raw wood, accommodating shorter or thinner stock
• Patented abrasive attachment system effectively tensions abrasive wraps, preventing loose abrasive and overlap
• Easiest access to abrasive fastening system of any drum sander; extra-wide space eliminates need for special tools
• Self-cooling drum prevents overheating and extends abrasive life
• Tension rollers adjustable in height; hold-down pressure eliminates snipe
• Excellent dust extraction as dust cover is formed to shape of drum
• Metal construction maximizes airflow and dust extraction
• Heavy-duty cast iron construction for strength, rigidity, and reduced vibration

Sanding Capacity

• Maximum Sanding Width - 50″ (Two Passes)
• Minimum Sanding Length - 2-¼″
• Maximum Sanding Thickness - 4″
• Minimum Sanding Thickness - 1/32″

Machine Specs

• Dimensions (D × W × H) - 27″ × 46″ × 53″ (On Stand)
• Drum - 5″ × 25″ Extruded Aluminum
• Drum Speed - 1740 RPM
• Dust Hood - 1 × 4″ Vacuum Port, Min. 600 CFM Recommended
• Conveyor Motor - 43 in.-lb torque, direct drive D.C. motor, variable 0–10 FPM
• Drive Motor (TEFC) - 1-¾ HP
• Power Requirements - 110 V, 20 Amp
• Table Height (Floor to Top of Table) - 33″
• Shipping Weight - 369 lbs (3 boxes including stand)
• Shipping Dimensions (L × W × H) - 45″ × 16″ × 24″
