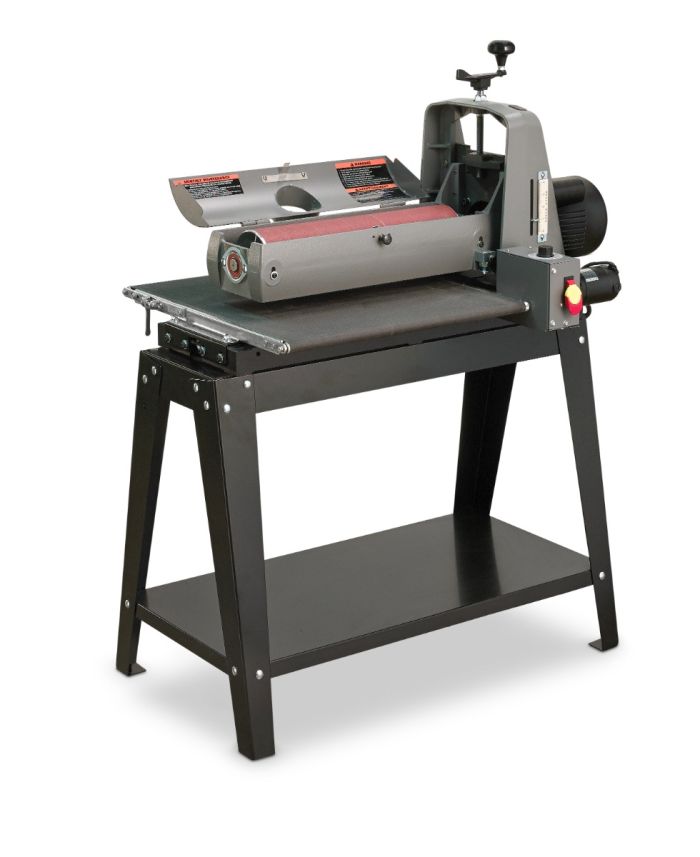

Laguna 19-38 DRUM SANDER WITH OPEN STAND SUPMX-71938-D

Features

• Simple Alignment Feature
• Indexed Alignment Setting
• Easy Height Adjustments
• Extra-Wide Conveyor
• Drum Will Never Go “Out of Alignment”
• CSA Certified

Specifications

• Drum Speed - 1740 RPM
• Maximum Sanding Width - 38″ (Two Passes)
• Minimum Sanding Length - 2-¼″
• Maximum Sanding Thickness - 4″
• Minimum Sanding Thickness - 1/32″
• Drum - 5″ x 19″ Extended Aluminum
• Dust Hood - 1 × 4″ Vacuum Port (Min 600 CFM recommended)
• Conveyor Speed - 0–10 FPM (Variable)
• Drive Motor - 1-¾ HP
• Power Requirements - 110V, 15 Amp, 20 Amp Service
• Shipping Weight - 286 lbs (3 boxes including stand)
• Shipping Dimensions (L × W × H) - 43″ × 16″ × 24″

Sanding Capacity

• Maximum Width - 38″ (two passes)
• Minimum Length - 5-½″
• Maximum Thickness - 4″ (Varies With Application)
• Minimum Thickness - 1/32″

Machine Specs

• Dimensions (H × W × D) - 24″ × 40″ × 24″
• Brush Speed - AC Inverter, infinitely variable, 200–1000 RPM
• Drum Speed - 1740 RPM
• Dust Hood - 1 × 4″ Vacuum Port, min. 600 CFM recommended
• Conveyor Motor - 43 lbs torque, direct drive D.C. motor, variable 0–10 FPM
• Drive Motor (TEFC) - 1-¾ HP
• Power Requirements - 110V, 15 Amp
• Net Weight - 264 lbs
• Shipping Weight - 371 lbs
