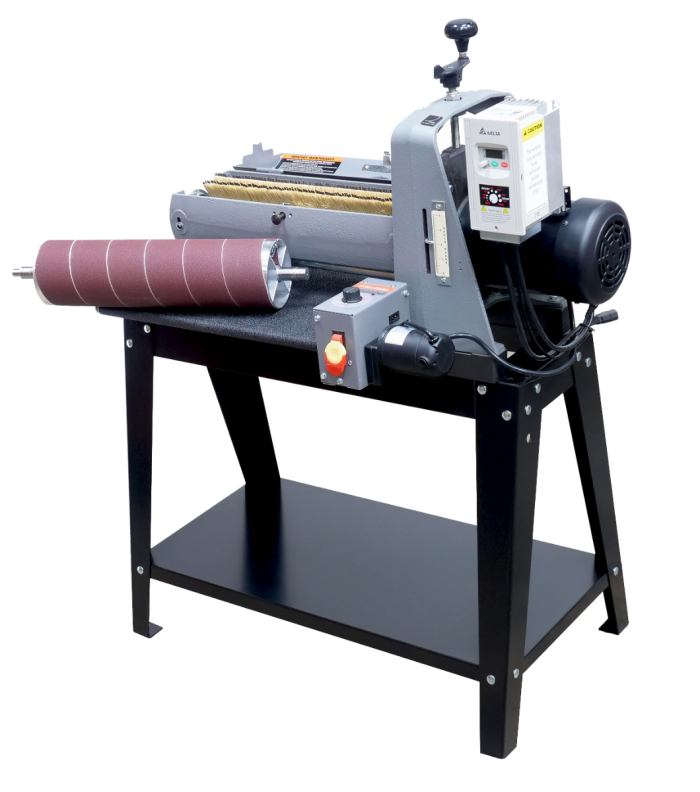

Laguna 19-38 BRUSH/DRUM COMBO 219383

Features

• Sanding Head Assembly with Flatter Installed
• Conveyor Table Assembly
• An Aluminum Drum with Two Bearing Sets
• A Coupling and one 80 Grit Abrasive Belt
• Open Stand Assembly

Additional Features

• Flatter: Produces near-finish results and eliminates primary hand sanding.
• Nylon: Scuff sand and defuzz stock.
• Wire: Pulls the soft grain out from softwoods or cleans reclaimed lumber.
• Drum: Dimension or finish sand flat stock.
• Simple Alignment Feature: One nut adjusts the conveyor parallel to the sanding head for fast alignment.
• Indexed Alignment Setting: Ensures flawless sanding for stock wider than 19″.
• Easy Height Adjustments: Thrust bearing and nut prevent drum movement; smooth, backlash-free height adjustment.
• Extra-Wide Conveyor: 22″ wide conveyor properly supports stock over 19″.
• Excellent dust extraction via metal dust cover shaped to drum.
• Tension rollers adjustable in height; hold-down pressure eliminates snipe.
• Heavy-duty cast iron construction for strength, rigidity, and reduced vibration.

Sanding Capacity

• Maximum Width - 38″ (two passes)
• Minimum Length - 5-½″
• Maximum Thickness - 4″ (Varies with Application)
• Minimum Thickness - 1/32″

Machine Specs

• Dimensions (H × W × D) - 24″ × 40″ × 24″
• Drum Speed - 1740 RPM
• Dust Hood - 1 × 4″ Vacuum Port, min. 600 CFM recommended
• Conveyor Motor - 43 in.-lb torque, direct drive D.C. motor, variable 0–10 FPM
• Drive Motor (TEFC) - 1-¾ HP
• Power Requirements - 110V, 15 Amp
• Net Weight - 264 lbs
• Shipping Weight - 371 lbs
• Shipping Dimensions (L × W × H) - 43″ × 16″ × 24″
