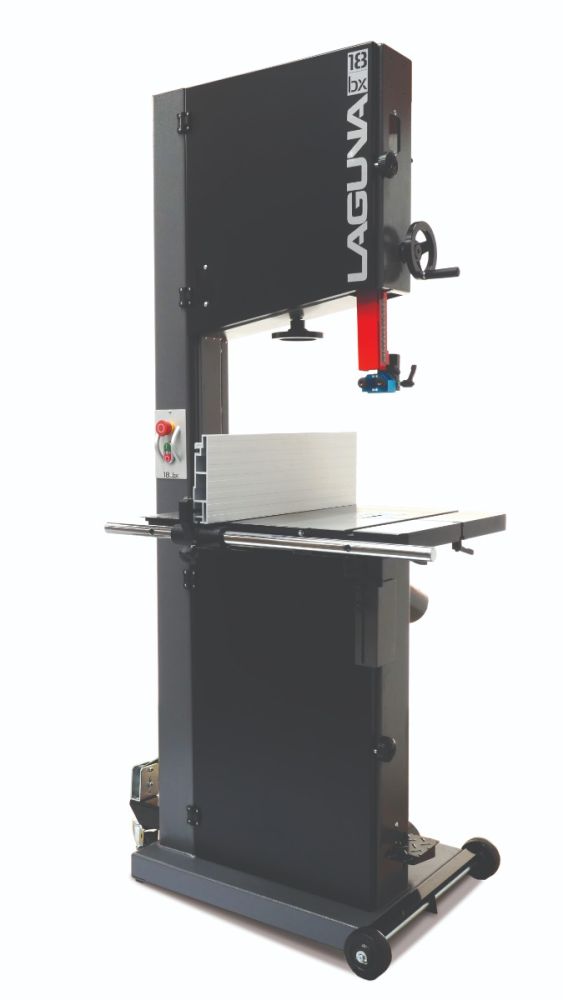

Laguna 18|BX 16" RESAW MBAND18BX2203

laguna
In Stock
SKU
MBAND18BX2203
$3,299.00
ⓘ Special Order
Special Order
This item is temporarily out of stock, and is expected to ship within 6–8 business days after ordering.

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|BX models.
Built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material.


Features

  • Motor: 3HP, 220V, 1 Ph, 12 Amp
  • Recommended Breaker: 20 Amp
  • Magnetic Starter
  • Min-Max Blade Width: 1/8″ – 1-1/4″
  • Resaw Capacity: 16″
  • Throat: 18″
  • Blade Length: 145″
  • Disc-Brake With Micro Switch
  • 220V Outlet On Back For Light
  • Window For Tension
  • Window For Tracking
  • Magnetic Blade Tension Guide
  • Worm Gear & Pinion Upper Guide
  • 10 Point Laguna Ceramic Guides
  • Flat Poly-Groove Drive Belt
  • Premium Anodized Insert With Micro Adjustment
  • Dynamically Balanced Cast Iron Wheels
  • Urethane Single Piece Snap-On Tire
  • Cast Table Size: 20″ x 26″
  • Table Tilt: -6°, +45°
  • Quick-Release Tension
  • Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″
  • Table Height: 38″
  • Dust Ports: 4″ x 2
  • Overall Height: 77-¾″
  • Dimensions (Base): 27″ x 20″
  • Dimensions Overall: 36″ x 30″
  • Dimensions Box: 36″ x 84″ x 30″
  • Weight (Net/Ship): 410/460 lbs
More Information
Power Phase1
TradesWoodworking
BrandLaguna
Voltage220 V
Tool TypeWood
