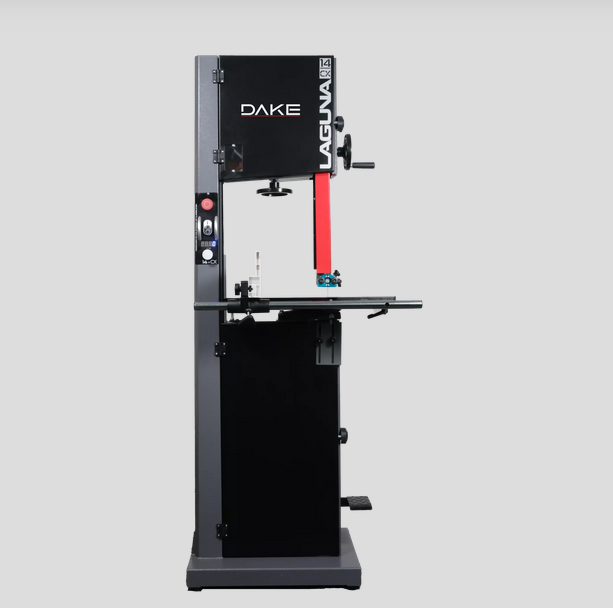

Laguna 14|CX BANDSAW MB14CX

Features

• DRO - Digital readout for blade speeds in SFPM (surface feet per minute)
• 2 Speed Pulley - Mechanical High and Low range for torque optimization
• Speed Control Knob - Adjust speed on the fly during cuts
• PWM - Electronic speed control via pulse width modulation for quick stopping

In-Depth Description

• Ferrous metals require lower blade speeds; wood, foam, and plastics cut better at higher speeds
• Cast-iron flywheels balanced with oversized shafts and sealed bearings
• Laguna ceramic guides with 10 contact points for precise cuts; inserts handle heat better and are replaceable
• Foot brake system with larger brake disc for added stopping power
• Dual dust collection ports at table surface, lower guides, and cabinet bottom
• Table tilts inside/outside for beveled cuts; clear windows for blade tracking and tension
• Magnetic tensioning indicator; handwheel and quick-release handle for blade tensioning
• Hi/Low fence positions for resawing and thin cuts; provides better hand positioning
• Worm-drive rack and pinion upper guidepost for easy positioning and locking
• Optional work lights with rear power outlet and mounting locations
• Exceptional quality blades and accessories recommended for peak performance

Optional Accessories

• High Quality Blades
• Resaw King Blade - Carbide-tipped, re-sharpenable, ¾" blade width recommended
• Pro-Force Blades - Swedish silicon steel, heat-treated teeth, multiple widths and TPI
• Shear-Force blades - Thin kerf for quick cuts
• Bi-Metal Blades - Variable TPI for metal cutting, multiple widths
• Dedicated Mobility Kit - Retractable pivoting wheel system for easy movement
• Work Lights - LED or Halogen, dual voltage LED with three styles, Halogen single/dual arm options
• Mini Guides - For blades narrower than ¼", wearable insert rods support the blade

Specifications

• Motor: 1-3/4 HP
• Input Power: 110-120 Volt AC
• Recommended Breaker: 20 Amp
• Motor Input (inverter): 166 VDC
• Throat: 13-5/8" (346mm)
• Table - Cast Iron: 16" x 21-1/2" (406.4 x 546mm)
• Table Tilt: -7° to +45°
• Miter Slot: 3/8" x 3/4" (9.525 x 19.05mm)
• Table Height: 38" (965mm)
• Blade Speed - High Range: 160 – 4400 FT/MIN
• Blade Speed - Low Range: 60 – 1600 FT/MIN
• Flywheels: Cast Iron
• Resaw Capacity: 13" (330.2mm)
• Blade Length: 115" (114-3/4" Min - 116" Max)
• Maximum Blade Width: 3/4" (19 mm)
• Minimum Blade Width: 1/8" (3 mm) *
• Guides: Laguna Ceramic
• Height: 70-1/2" (1,790mm)
• Machine Dimensions (L x W): 29-3/4" x 28" (755 x 712mm)
• Base Footprint: 22-11/16" x 17-9/16" (576 x 446mm)
• Dimensions w/ Mobility Kit (W x D): 36-5/8" x 28" (930 x 712mm)
• Base footprint w/ Mobility Kit: 33" x 20-1/2" (838 x 521mm)
• Weight: 258 lbs (117 kg)
• Shipping Weight: 280 lbs (127 kg)
• Package size (L x W x H): 73-1/8" x 26-1/2" x 24-5/16"
• Mobility Kit: Optional
• Industrial Work Light: Optional
• *With optional Mini Guides for blades under 1/4"
